USBFTV7PE1N

Active

Amphenol Socapex

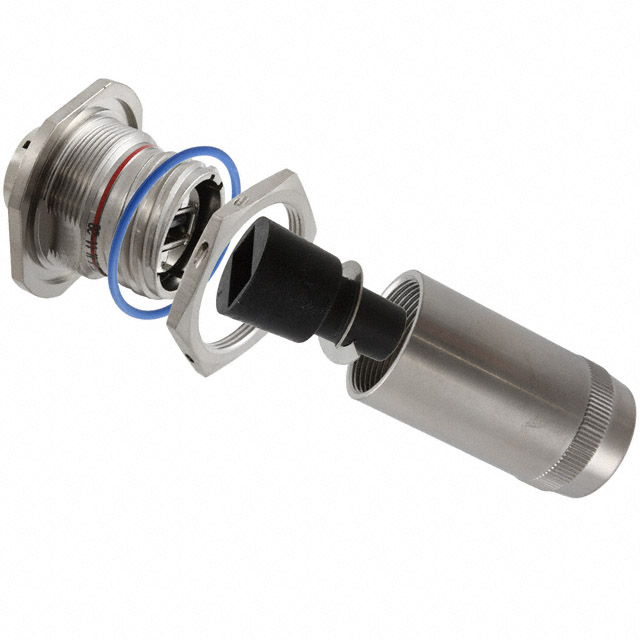

USB ADAPTOR, 2.0 TYPE A-TYPE A, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSBF TV Recptacles Datasheet +2

USBFTV7PE1N

Active

Amphenol Socapex

USB ADAPTOR, 2.0 TYPE A-TYPE A, IP67

Deep-Dive with AI

DocumentsUSBF TV Recptacles Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	USBFTV7PE1N	USBFTV7 Series

Configuration	-	A Female to A Male (Circular Coupling), A Female to Cable, Round (Circular Coupling)
Connector Type	-	USB-A (USB TYPE-A)
Convert From (Adapter End)	USB-A (USB TYPE-A), Receptacle	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	USB-A (USB TYPE-A), Receptacle	USB-A (USB TYPE-A), Receptacle
Features	-	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount, Circular Threaded Coupling, Backshell
Gender	-	Receptacle
Ingress Protection	-	IP68 - Dust Tight, Waterproof
Length	-	1 - 500 m
Length	-	0.98 - 6.56 ft
Length	-	2.3 ft
Length	-	700 mm
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Bulkhead, Panel Mount	Bulkhead, Panel Mount, Through Hole
Number of Contacts	-	4
Number of Ports	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shell/Shielding Material	-	Aluminum
Shielding	-	Shielded
Specifications	-	USB 2.0
Termination	-	Solder
Transfer Rate	-	480 Mbps
Wire Gauge	-	24 - 28 AWG

USBFTV7 Series

CBL USB2.0 A RCPT-A PLUG W/COUPL

Part	Transfer Rate	Features	Wire Gauge	Specifications	Configuration	Length [x]	Length [x]	Shielding	Length	Length	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Shell/Shielding Material	Mating Cycles	Number of Ports	Ingress Protection	Connector Type	Termination	Mounting Feature	Gender
Amphenol Socapex USBFTV7SA2N10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7SA2N04OPEN	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to Cable, Round (Circular Coupling)	400 mm	1.31 ft	Shielded
Amphenol Socapex USBFTV7SA2N07A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)			Shielded	2.3 ft	700 mm
Amphenol Socapex USBFTV7PE1N											Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle	Bulkhead, Panel Mount
Amphenol Socapex USBFTV7PE2G		Backshell, Circular Threaded Coupling		USB 2.0										85 °C	-40 °C	4	Aluminum	500	1	IP68 - Dust Tight, Waterproof	USB-A (USB TYPE-A)	Solder	Bulkhead - Front Side Nut	Receptacle
Amphenol Socapex USBFTV7SA2G10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7HA2G10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7SA2G03A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	300 mm	0.98 ft	Shielded
Amphenol Socapex USBFTV7SA2N03A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	300 mm	0.98 ft	Shielded
Amphenol Socapex USBFTV71N											Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle	Bulkhead, Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 149.71
		10	$ 137.38
		25	$ 132.09
		50	$ 127.69
Newark	Each	1	$ 148.61
		5	$ 134.89
		10	$ 121.16
		25	$ 112.27

Description

General part information

USBFTV7 Series

Adapter Connector USB-A (USB TYPE-A), Receptacle To USB-A (USB TYPE-A), Receptacle Panel Mount, Bulkhead
