USBFTV7PE2G

Active

Amphenol Socapex

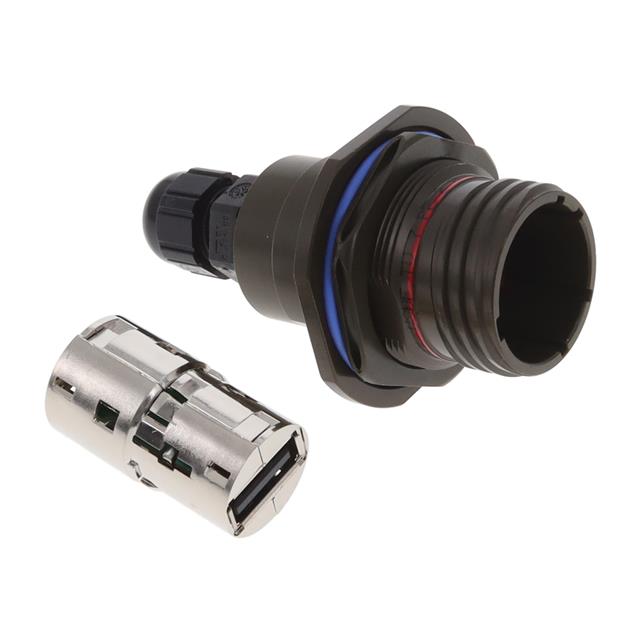

CONN RCP USB2.0 TYPEA 4P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet USBF TV Recptacles +1

USBFTV7PE2G

Active

Amphenol Socapex

CONN RCP USB2.0 TYPEA 4P PNL MNT

Deep-Dive with AI

DocumentsDatasheet USBF TV Recptacles +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 137.19
		10	$ 125.89
		30	$ 121.05
		50	$ 117.01

Description

General part information

USBFTV7 Series

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount

Documents

Technical documentation and resources

Datasheet

USBF TV Recptacles

Datasheet

RJ Field - USB Field Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	USBFTV7PE2G	USBFTV7 Series

Configuration	-	A Female to A Male (Circular Coupling), A Female to Cable, Round (Circular Coupling)
Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A)
Convert From (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Features	Circular Threaded Coupling, Backshell	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount, Circular Threaded Coupling, Backshell
Gender	Receptacle	Receptacle
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Length	-	1 - 500 m
Length	-	0.98 - 6.56 ft
Length	-	2.3 ft
Length	-	700 mm
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Bulkhead, Panel Mount, Through Hole
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Aluminum	Aluminum
Shielding	-	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Transfer Rate	-	480 Mbps
Wire Gauge	-	24 - 28 AWG

USBFTV7 Series

CBL USB2.0 A RCPT-A PLUG W/COUPL

Part	Transfer Rate	Features	Wire Gauge	Specifications	Configuration	Length [x]	Length [x]	Shielding	Length	Length	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Shell/Shielding Material	Mating Cycles	Number of Ports	Ingress Protection	Connector Type	Termination	Mounting Feature	Gender
Amphenol Socapex USBFTV7SA2N10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7SA2N04OPEN	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to Cable, Round (Circular Coupling)	400 mm	1.31 ft	Shielded
Amphenol Socapex USBFTV7SA2N07A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)			Shielded	2.3 ft	700 mm
Amphenol Socapex USBFTV7PE1N											Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle	Bulkhead, Panel Mount
Amphenol Socapex USBFTV7PE2G		Backshell, Circular Threaded Coupling		USB 2.0										85 °C	-40 °C	4	Aluminum	500	1	IP68 - Dust Tight, Waterproof	USB-A (USB TYPE-A)	Solder	Bulkhead - Front Side Nut	Receptacle
Amphenol Socapex USBFTV7SA2G10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7HA2G10A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	1 m	3.28 ft	Shielded
Amphenol Socapex USBFTV7SA2G03A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	300 mm	0.98 ft	Shielded
Amphenol Socapex USBFTV7SA2N03A	480 Mbps	Data Transfer and Charge, Industrial Environments - IP68, Panel Mount	24 AWG, 28 AWG	USB 2.0	A Female to A Male (Circular Coupling)	300 mm	0.98 ft	Shielded
Amphenol Socapex USBFTV71N											Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle	Bulkhead, Panel Mount
