663-037-264-049

Active

EDAC Inc.

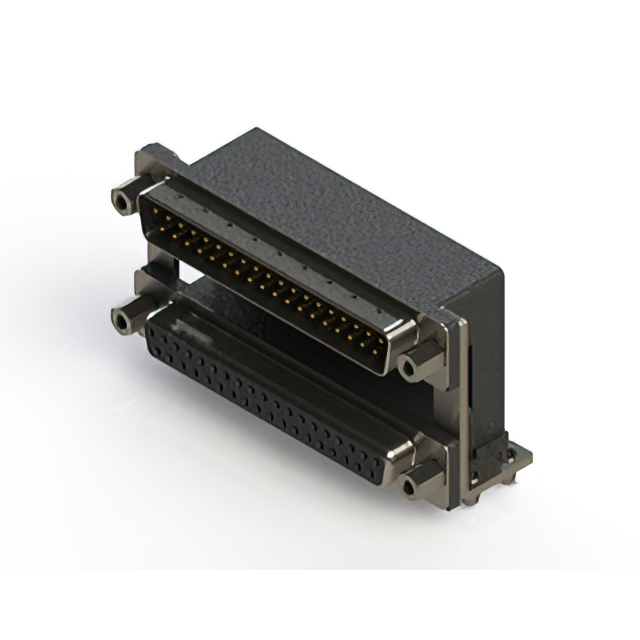

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

663-037-264-049

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	663-037-264-049

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

663-037 Series

...

Part	Connector Type	Shell Material, Finish	Current Rating (Amps)	Material Flammability Rating	Color	Features	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Backset Spacing	Backset Spacing	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Connector Style	Dielectric Material	Shell Size, Connector Layout	Number of Rows	Contact Type	Flange Feature	Contact Finish Thickness
EDAC Inc. 663-037-664-006	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Grounding Indents Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.76 Ám	30 Áin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Female Screwlock (4-40) Mating Side
EDAC Inc. 663-037-264-049	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle			Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Female Screwlock (4-40) Mating Side	Flash
EDAC Inc. 663-037-264-05A	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle			Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (M3)	Flash
EDAC Inc. 663-037-364-036	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.38 µm	15 µin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Female Screwlock (4-40) Mating Side
EDAC Inc. 663-037-364-058	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.38 µm	15 µin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (4-40)
EDAC Inc. 663-037-664-008	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.76 Ám	30 Áin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (4-40)
EDAC Inc. 663-037-364-057	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.38 µm	15 µin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (Unthreaded)
EDAC Inc. 663-037-664-058	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.76 Ám	30 Áin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (4-40)
EDAC Inc. 663-037-264-054	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle			Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (Unthreaded)	Flash
EDAC Inc. 663-037-364-044	Plug Male Pins Receptacle Female Sockets	Nickel Plated Steel	3 A	UL94 V-0	Black	Board Lock Grounding Indents Mounting Brackets Shielded	Brass Phosphor Bronze	Solder	85 °C	-55 °C	8.08 mm	0.318 "	Through Hole Right Angle	0.38 µm	15 µin	Gold	37	D-Sub - Stacked	Polyester Thermoplastic	4	2	Signal	Housing/Shell (Unthreaded)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 11.06
Newark	Each	1	$ 12.20
		100	$ 9.76
		250	$ 8.88
		500	$ 8.13
		1000	$ 6.88

Description

General part information

663-037 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
