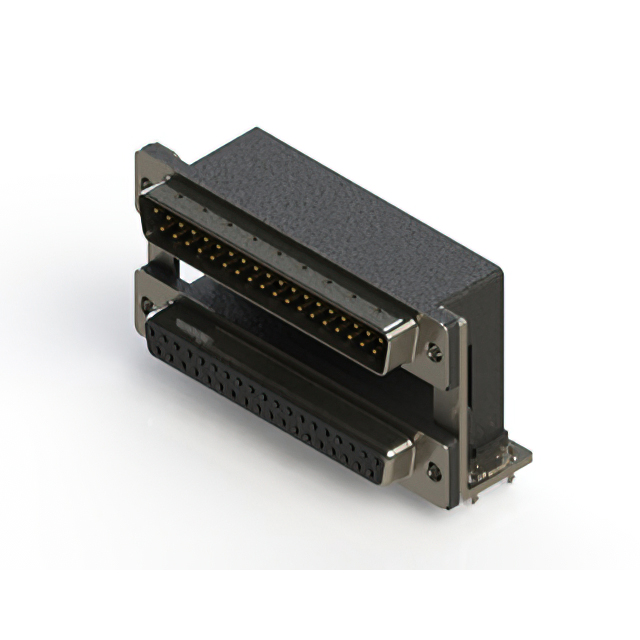

663-037-364-036
ActiveEDAC Inc.
663 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
663-037-364-036
ActiveEDAC Inc.
663 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 663-037-364-036 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets, Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass, Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
663-037 Series
...
| Part | Connector Type | Shell Material, Finish | Current Rating (Amps) | Material Flammability Rating | Color | Features | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Backset Spacing | Backset Spacing | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Connector Style | Dielectric Material | Shell Size, Connector Layout | Number of Rows | Contact Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Grounding Indents Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.76 Ám | 30 Áin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Female Screwlock (4-40) Mating Side | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Female Screwlock (4-40) Mating Side | Flash | ||
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (M3) | Flash | ||
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.38 µm | 15 µin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Female Screwlock (4-40) Mating Side | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.38 µm | 15 µin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (4-40) | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.76 Ám | 30 Áin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (4-40) | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.38 µm | 15 µin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (Unthreaded) | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.76 Ám | 30 Áin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (4-40) | |
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (Unthreaded) | Flash | ||
EDAC Inc. | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | 3 A | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets Shielded | Brass Phosphor Bronze | Solder | 85 °C | -55 °C | 8.08 mm | 0.318 " | Through Hole Right Angle | 0.38 µm | 15 µin | Gold | 37 | D-Sub - Stacked | Polyester Thermoplastic | 4 | 2 | Signal | Housing/Shell (Unthreaded) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 14.44 | |
Description
General part information
663-037 Series
37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
