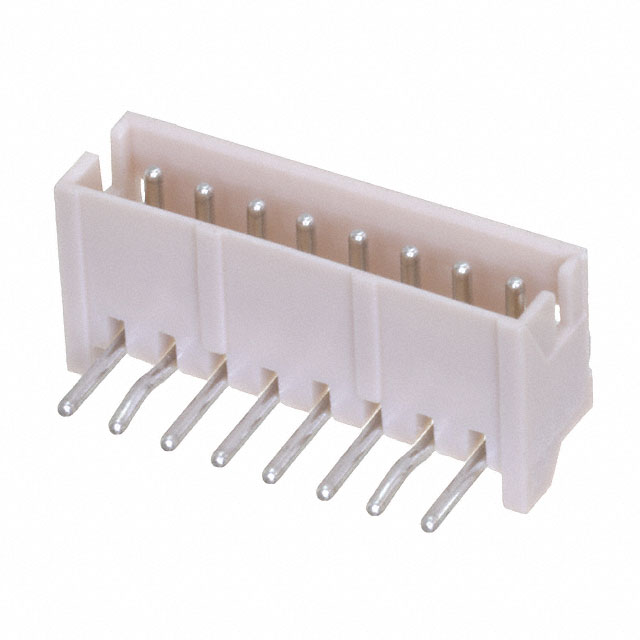

15SH-A-08-TR

Active

Adam Tech

CONN HEADER R/A 8POS 1.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

15SH-A-08-TR

Active

Adam Tech

CONN HEADER R/A 8POS 1.5MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15SH-A-08-TR	15SH-A Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post [x]	0.106 in	0.106 in
Contact Length - Post [x]	2.69 mm	2.69 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.5 A	0.7 - 1.5 A
Fastening Type	Friction Lock	Friction Lock
Features	-	Solder Retention
Insulation Color	Ivory	Ivory, Natural
Insulation Height	3.7 mm	3.7 - 5 mm
Insulation Height	0.146 "	0.146 - 0.197 "
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Thermoplastic, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount, Surface Mount, Right Angle, Through Hole
Number of Positions	8	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire, Board to Board, Cable
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	100 VAC	50 - 100 VAC

15SH-A Series

CONN HEADER R/A 8POS 1.5MM

Part	Fastening Type	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Mounting Type	Contact Shape	Termination	Number of Positions	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Style	Material Flammability Rating	Number of Positions Loaded	Connector Type	Insulation Color	Contact Type	Current Rating (Amps)	Features
Adam Tech 15SH-A-08-TR	Friction Lock	3.7 mm	0.146 "	100 VAC	Tin	Brass	-25 °C	85 °C	Polyamide (PA66), Nylon 6/6	1	Through Hole, Right Angle	Circular	Kinked Pin, Solder	8	Shrouded - 4 Wall	0.106 in	2.69 mm	Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin	1.5 A
Adam Tech 15SH-A-03-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C	Thermoplastic	1	Surface Mount	Circular	Solder		Shrouded - 4 Wall			Board to Board, Cable	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-04-TR-SMT-T/R	Friction Lock	3.7 mm	0.146 "	50 VAC	Tin	Brass	-25 °C	85 °C	Nylon 9T, Polyamide (PA9T)	1	Surface Mount, Right Angle	Circular	Solder	4	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin		Solder Retention
Adam Tech 15SH-A-07-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	7	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-05-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder		Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-09-TR-SMT-T/R	Friction Lock	3.7 mm	0.146 "	50 VAC	Tin	Brass	-25 °C	85 °C	Nylon 9T, Polyamide (PA9T)	1	Surface Mount, Right Angle	Circular	Solder	9	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin		Solder Retention
Adam Tech 15SH-A-04-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	4	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-02-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	2	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-02-TS	Friction Lock	4.6 mm	0.181 in	50 VAC	Tin	Brass	-25 °C	85 °C	Polyamide (PA66), Nylon 6/6	1	Through Hole	Circular	Kinked Pin, Solder	2	Shrouded - 4 Wall	0.106 in	2.69 mm	Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin
Adam Tech 15SH-A-09-TS-SMT	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	9	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.31
		10	$ 0.23
		100	$ 0.18
		500	$ 0.15
		1000	$ 0.14
		5000	$ 0.13
