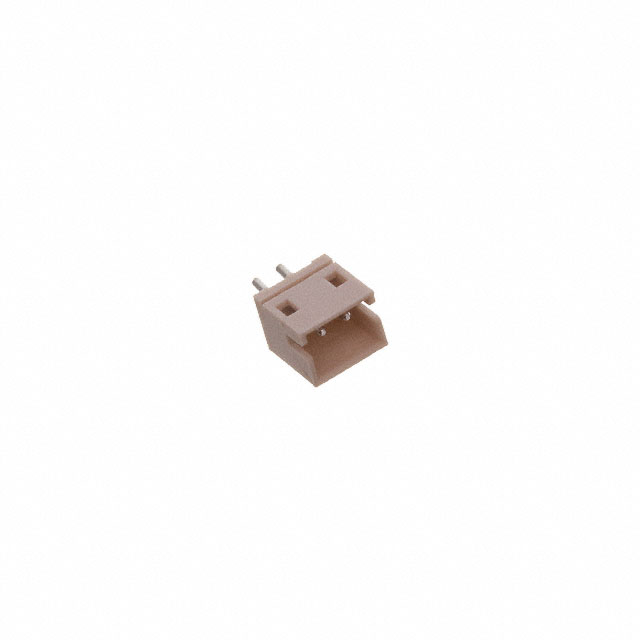

15SH-A-02-TS

Active

Adam Tech

CONN SHROUDED HEADER (4 SIDES) HDR 2 POS 1.5MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry Brochure ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

15SH-A-02-TS

Active

Adam Tech

CONN SHROUDED HEADER (4 SIDES) HDR 2 POS 1.5MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsMedical Industry Brochure ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.11
		10	$ 0.08
		100	$ 0.06
		500	$ 0.05
		1000	$ 0.05

Description

General part information

15SH-A Series

Connector Header Through Hole 2 position 0.059" (1.50mm)

Documents

Technical documentation and resources

Medical Industry Brochure

Datasheet

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Datasheet

Specification	15SH-A-02-TS	15SH-A Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post [x]	0.106 in	0.106 in
Contact Length - Post [x]	2.69 mm	2.69 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	-	0.7 - 1.5 A
Fastening Type	Friction Lock	Friction Lock
Features	-	Solder Retention
Insulation Color	Ivory	Ivory, Natural
Insulation Height	4.6 mm	3.7 - 5 mm
Insulation Height	0.181 in	0.146 - 0.197 "
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Thermoplastic, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Surface Mount, Surface Mount, Right Angle, Through Hole
Number of Positions	2	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire, Board to Board, Cable
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	50 VAC	50 - 100 VAC

Part

Fastening Type

Insulation Height

Voltage Rating

Contact Finish - Post

Contact Material

Operating Temperature [Min]

Operating Temperature [Max]

Insulation Material

Number of Rows

Mounting Type

Contact Shape

Termination

Number of Positions

Shrouding

Contact Length - Post [x]

Style

Material Flammability Rating

Number of Positions Loaded

Connector Type

Insulation Color

Contact Type

Current Rating (Amps)

Features

Adam Tech

15SH-A-08-TR

Friction Lock

3.7 mm

0.146 "

100 VAC

Tin

Brass

-25 °C

85 °C

Polyamide (PA66), Nylon 6/6

Through Hole, Right Angle

Circular

Kinked Pin, Solder

Shrouded - 4 Wall

0.106 in

2.69 mm

Board to Cable/Wire

UL94 V-0

All

Header

Ivory

Male Pin

1.5 A

Adam Tech

15SH-A-03-TS-SMT-T/R

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Thermoplastic

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Board, Cable

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Adam Tech

15SH-A-04-TR-SMT-T/R

Friction Lock

3.7 mm

0.146 "

50 VAC

Tin

Brass

-25 °C

85 °C

Nylon 9T, Polyamide (PA9T)

Surface Mount, Right Angle

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Ivory

Male Pin

Solder Retention

Adam Tech

15SH-A-07-TS-SMT-T/R

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Adam Tech

15SH-A-05-TS-SMT-T/R

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Adam Tech

15SH-A-09-TR-SMT-T/R

Friction Lock

3.7 mm

0.146 "

50 VAC

Tin

Brass

-25 °C

85 °C

Nylon 9T, Polyamide (PA9T)

Surface Mount, Right Angle

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Ivory

Male Pin

Solder Retention

Adam Tech

15SH-A-04-TS-SMT-T/R

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Adam Tech

15SH-A-02-TS-SMT-T/R

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Adam Tech

15SH-A-02-TS

Friction Lock

4.6 mm

0.181 in

50 VAC

Tin

Brass

-25 °C

85 °C

Polyamide (PA66), Nylon 6/6

Through Hole

Circular

Kinked Pin, Solder

Shrouded - 4 Wall

0.106 in

2.69 mm

Board to Cable/Wire

UL94 V-0

All

Header

Ivory

Male Pin

Adam Tech

15SH-A-09-TS-SMT

Friction Lock

5 mm

0.197 in

50 VAC

Tin

Brass

-25 °C

85 °C

Surface Mount

Circular

Solder

Shrouded - 4 Wall

Board to Cable/Wire

UL94 V-0

All

Header

Natural

Male Pin

0.7 A

Solder Retention

Part	Fastening Type	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Mounting Type	Contact Shape	Termination	Number of Positions	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Style	Material Flammability Rating	Number of Positions Loaded	Connector Type	Insulation Color	Contact Type	Current Rating (Amps)	Features
Adam Tech 15SH-A-08-TR	Friction Lock	3.7 mm	0.146 "	100 VAC	Tin	Brass	-25 °C	85 °C	Polyamide (PA66), Nylon 6/6	1	Through Hole, Right Angle	Circular	Kinked Pin, Solder	8	Shrouded - 4 Wall	0.106 in	2.69 mm	Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin	1.5 A
Adam Tech 15SH-A-03-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C	Thermoplastic	1	Surface Mount	Circular	Solder		Shrouded - 4 Wall			Board to Board, Cable	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-04-TR-SMT-T/R	Friction Lock	3.7 mm	0.146 "	50 VAC	Tin	Brass	-25 °C	85 °C	Nylon 9T, Polyamide (PA9T)	1	Surface Mount, Right Angle	Circular	Solder	4	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin		Solder Retention
Adam Tech 15SH-A-07-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	7	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-05-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder		Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-09-TR-SMT-T/R	Friction Lock	3.7 mm	0.146 "	50 VAC	Tin	Brass	-25 °C	85 °C	Nylon 9T, Polyamide (PA9T)	1	Surface Mount, Right Angle	Circular	Solder	9	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin		Solder Retention
Adam Tech 15SH-A-04-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	4	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-02-TS-SMT-T/R	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	2	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
Adam Tech 15SH-A-02-TS	Friction Lock	4.6 mm	0.181 in	50 VAC	Tin	Brass	-25 °C	85 °C	Polyamide (PA66), Nylon 6/6	1	Through Hole	Circular	Kinked Pin, Solder	2	Shrouded - 4 Wall	0.106 in	2.69 mm	Board to Cable/Wire	UL94 V-0	All	Header	Ivory	Male Pin
Adam Tech 15SH-A-09-TS-SMT	Friction Lock	5 mm	0.197 in	50 VAC	Tin	Brass	-25 °C	85 °C		1	Surface Mount	Circular	Solder	9	Shrouded - 4 Wall			Board to Cable/Wire	UL94 V-0	All	Header	Natural	Male Pin	0.7 A	Solder Retention
