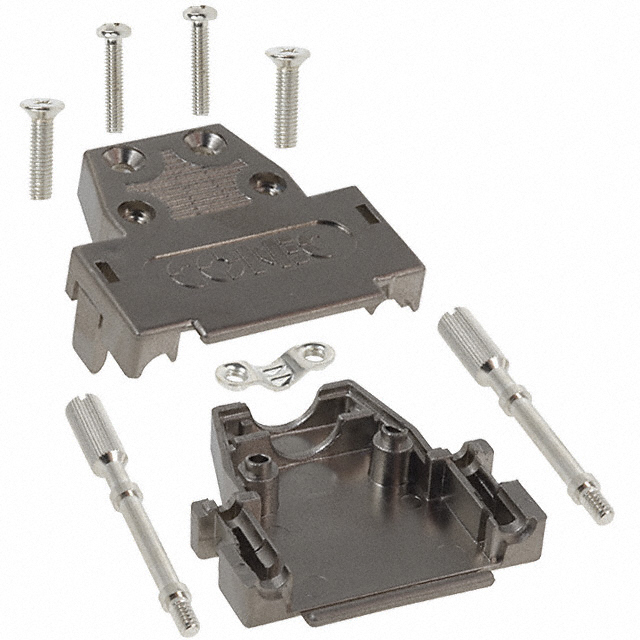

165X10919XE

Active

Amphenol CONEC

D SUB BACKSHELL, 180DEG, 15POS, SIZE DA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X10919XE

Active

Amphenol CONEC

D SUB BACKSHELL, 180DEG, 15POS, SIZE DA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X10919XE

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Mating Screws 4-40
Material	Plastic, Metallized
Number of Positions	15
Primary Material	Plastic
Shielding	Shielded

165X109 Series

Part	Compatible D-Sub Size	Material	Shielding	Compatible Shell Size	Features	Accessory Type	Plating	Number of Positions	Hardware	Primary Material	Cable Type	Cable Exit	Color
Amphenol CONEC 165X10989X	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws M3	Two Piece Backshell	Nickel	37	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10909XE	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws 4-40	Two Piece Backshell		9		Plastic	Round	180 °
Amphenol CONEC 165X10959X	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws M3	Two Piece Backshell	Nickel	9	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10919XE	15pos HD26pos	Metallized Plastic	Shielded	A	Mating Screws 4-40	Two Piece Backshell		15		Plastic	Round	180 °
Amphenol CONEC 165X10999X	50pos HD78pos	Metallized Plastic	Shielded	D	Mating Screws M3	Two Piece Backshell	Nickel	50	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10939X	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws 4-40	Two Piece Backshell	Nickel	37		Plastic	Round	180 °	Silver
Amphenol CONEC 165X10959XE	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws M3	Two Piece Backshell	Nickel	9	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10929X	25pos HD44pos	Metallized Plastic	Shielded	B	Mating Screws 4-40	Two Piece Backshell	Nickel			Plastic	Round	180 °
Amphenol CONEC 165X10939XE	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws 4-40	Two Piece Backshell	Nickel	37	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10919X	15pos HD26pos	Metallized Plastic	Shielded	A	Mating Screws 4-40	Two Piece Backshell		15		Plastic	Round	180 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.22
		10	$ 9.05
		30	$ 8.71
		60	$ 8.36
		120	$ 8.18
Newark	Each	1	$ 5.42
		10	$ 4.92
		25	$ 4.51
		50	$ 4.16
		100	$ 3.88
		250	$ 3.62
		500	$ 3.38
		1000	$ 3.19

Description

General part information

165X109 Series

15 Position Two Piece Backshell Connector 180° Shielded
