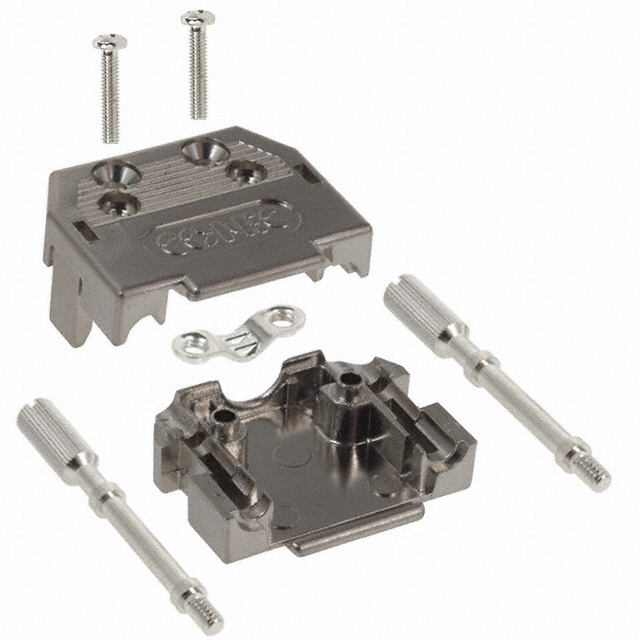

165X10909XE

Active

Amphenol CONEC

CONN BACKSHELL 9POS 180DEG SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X10909XE

Active

Amphenol CONEC

CONN BACKSHELL 9POS 180DEG SHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X10909XE

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Material	Plastic, Metallized
Number of Positions	9
Primary Material	Plastic
Shielding	Shielded

165X109 Series

Part	Compatible D-Sub Size	Material	Shielding	Compatible Shell Size	Features	Accessory Type	Plating	Number of Positions	Hardware	Primary Material	Cable Type	Cable Exit	Color
Amphenol CONEC 165X10989X	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws M3	Two Piece Backshell	Nickel	37	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10909XE	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws 4-40	Two Piece Backshell		9		Plastic	Round	180 °
Amphenol CONEC 165X10959X	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws M3	Two Piece Backshell	Nickel	9	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10919XE	15pos HD26pos	Metallized Plastic	Shielded	A	Mating Screws 4-40	Two Piece Backshell		15		Plastic	Round	180 °
Amphenol CONEC 165X10999X	50pos HD78pos	Metallized Plastic	Shielded	D	Mating Screws M3	Two Piece Backshell	Nickel	50	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10939X	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws 4-40	Two Piece Backshell	Nickel	37		Plastic	Round	180 °	Silver
Amphenol CONEC 165X10959XE	9pos HD15pos	Metallized Plastic	Shielded	E	Mating Screws M3	Two Piece Backshell	Nickel	9	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10929X	25pos HD44pos	Metallized Plastic	Shielded	B	Mating Screws 4-40	Two Piece Backshell	Nickel			Plastic	Round	180 °
Amphenol CONEC 165X10939XE	37pos HD62pos	Metallized Plastic	Shielded	C	Mating Screws 4-40	Two Piece Backshell	Nickel	37	Assembly Hardware Strain Relief	Plastic	Round	180 °
Amphenol CONEC 165X10919X	15pos HD26pos	Metallized Plastic	Shielded	A	Mating Screws 4-40	Two Piece Backshell		15		Plastic	Round	180 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.60
		10	$ 12.77
		25	$ 11.55
		50	$ 10.72
		100	$ 9.98
		250	$ 9.09
		500	$ 8.50
		1000	$ 7.96

Description

General part information

165X109 Series

9 Position Two Piece Backshell Connector 180° Shielded
