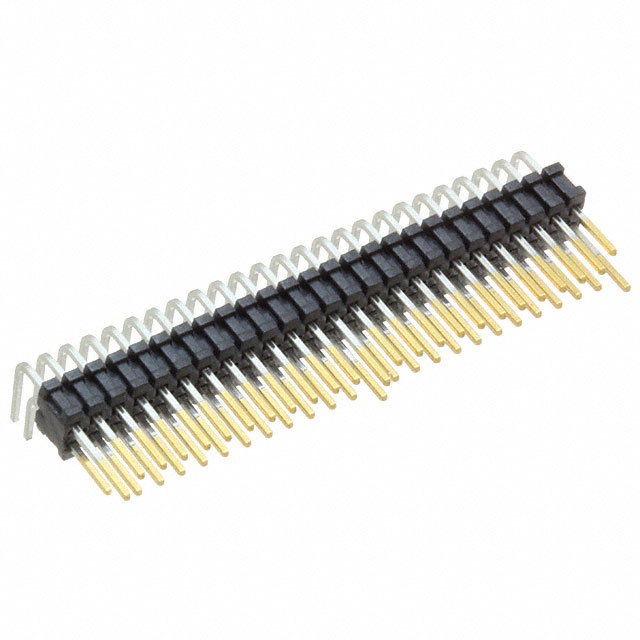

Specification	HPT-125-01-L-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Length - Post	0.09 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.135 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

HPT-125 Series

Part	Contact Material	Number of Positions Loaded	Row Spacing - Mating	Insulation Color	Contact Length - Post	Fastening Type	Termination	Shrouding	Mounting Type	Contact Type	Number of Rows	Pitch - Mating	Insulation Material	Style	Insulation Height	Number of Positions	Connector Type	Contact Shape	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating
Samtec Inc. HPT-125-01-S-D-FE	Phosphor Bronze	All	0.05 in	Black	0.283 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold
Samtec Inc. HPT-125-01-S-D-FC	Phosphor Bronze	All	0.05 in	Black	0.15 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold
Samtec Inc. HPT-125-01-LM-D-RA	Phosphor Bronze	All	0.05 in	Black	0.09 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold	Tin	10 µin
Samtec Inc. HPT-125-01-L-D-FC	Phosphor Bronze	All	0.05 in	Black	0.15 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold	Tin	10 µin
Samtec Inc. HPT-125-01-L-D-FE	Phosphor Bronze	All	0.05 in	Black	0.283 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold	Tin	10 µin
Samtec Inc. HPT-125-01-L-D-RA	Phosphor Bronze	All	0.05 in	Black	0.09 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold	Tin	10 µin
Samtec Inc. HPT-125-01-SM-D-RA	Phosphor Bronze	All	0.05 in	Black	0.09 in	Push-Pull	Solder	Unshrouded	Right Angle Through Hole	Male Pin	2	0.05 in	Liquid Crystal Polymer (LCP)	Board	0.135 in	50	Header	Square	Gold
