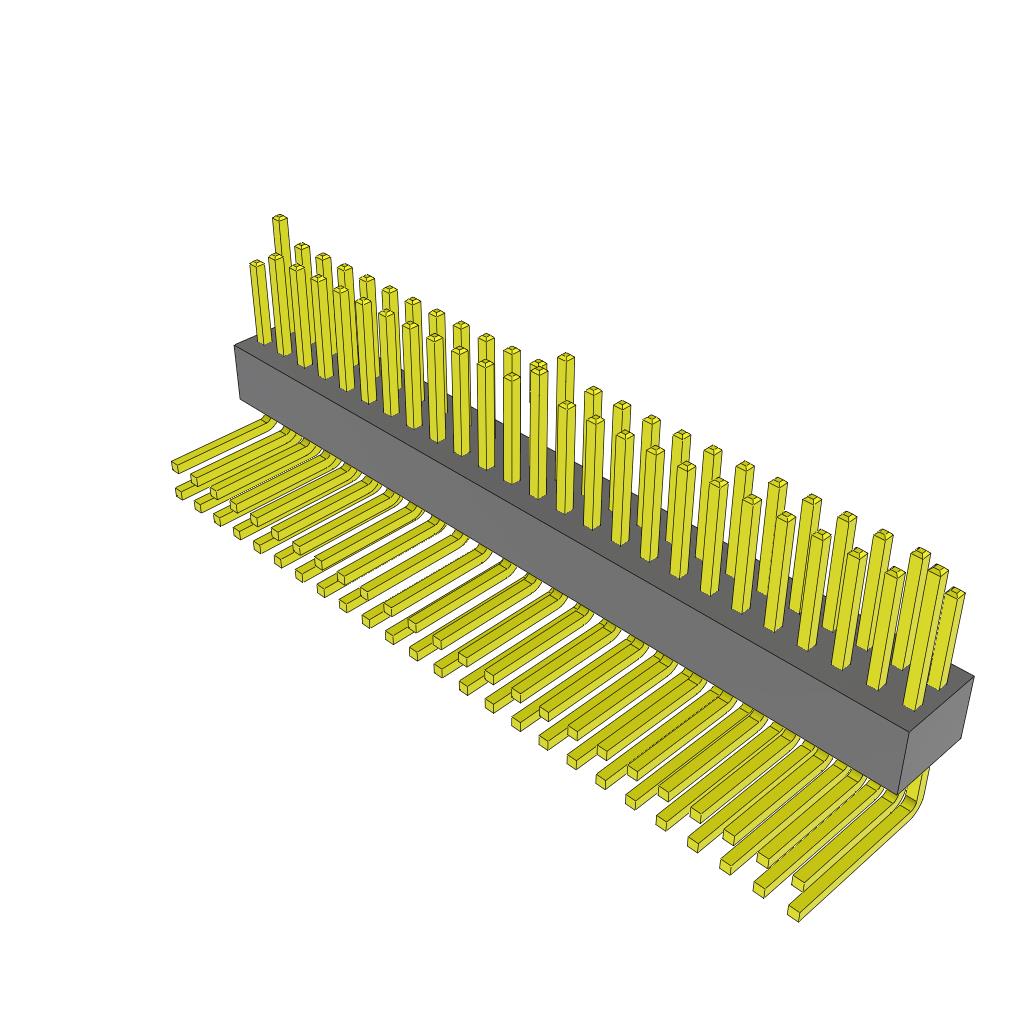

HPT-125-01-L-D-FC

Active

Samtec Inc.

.050" HOT PLUGGABLE MICRO TERMIN

Deep-Dive with AI

Search across all available documentation for this part.

Documents.050" Hot Pluggable Micro Terminal Strip Datasheet

HPT-125-01-L-D-FC

Active

Samtec Inc.

.050" HOT PLUGGABLE MICRO TERMIN

Deep-Dive with AI

Documents.050" Hot Pluggable Micro Terminal Strip Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPT-125-01-L-D-FC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

HPT-125 Series

Part	Number of Positions Loaded	Number of Positions	Insulation Material	Number of Rows	Contact Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Insulation Color	Contact Material	Shrouding	Contact Finish - Mating	Connector Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Finish - Post
Samtec Inc. HPT-125-01-S-D-FE	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm	0.283 in	7.19 mm	7.2 mm	0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder
Samtec Inc. HPT-125-01-S-D-FC	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm	0.15 in	3.81 mm		0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder
Samtec Inc. HPT-125-01-LM-D-RA	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm			2.29 mm	0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder	10 çin	0.25 çm	0.09 "	Tin
Samtec Inc. HPT-125-01-L-D-FC	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm	0.15 in	3.81 mm		0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder	10 çin	0.25 çm		Tin
Samtec Inc. HPT-125-01-L-D-FE	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm	0.283 in	7.19 mm		0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder	10 çin	0.25 çm		Tin
Samtec Inc. HPT-125-01-L-D-RA	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm			2.29 mm	0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder	10 çin	0.25 çm	0.09 "	Tin
Samtec Inc. HPT-125-01-SM-D-RA	All	50	Liquid Crystal Polymer (LCP)	2	Male Pin	Through Hole Right Angle	0.05 in	1.27 mm			2.29 mm	0.05 in	1.27 mm	Square	3.43 mm	0.135 "	Push-Pull	Black	Phosphor Bronze	Unshrouded	Gold	Header	Solder			0.09 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	18	$ 9.39
