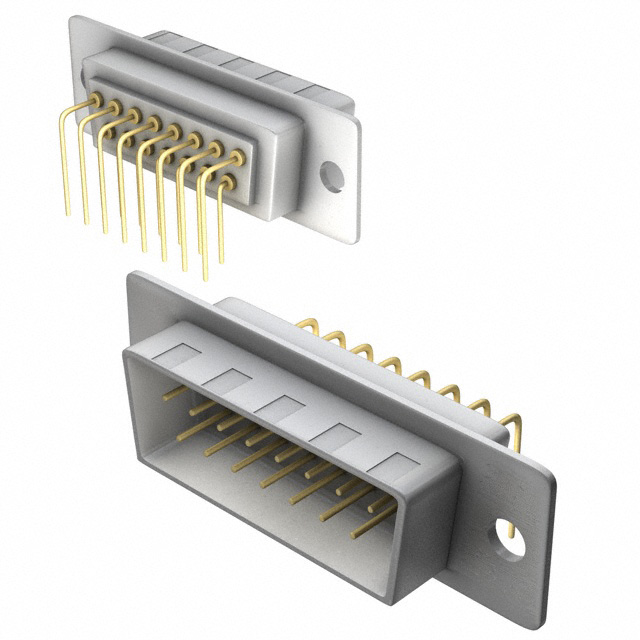

773-E15-113R001 - R773-EyyRightAngle_E15

773-E15-113R001

Active
MH Connectors

STANDARD D SUB CONNECTOR, SEAL D SERIES, DA, PLUG, 15, STEEL BODY, SOLDER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENDrawing EN+5
773-E15-113R001 - R773-EyyRightAngle_E15

773-E15-113R001

Active
MH Connectors

STANDARD D SUB CONNECTOR, SEAL D SERIES, DA, PLUG, 15, STEEL BODY, SOLDER ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image ENDrawing EN+5

Technical Specifications

Parameters and characteristics for this part

Specification773-E15-113R001
Backset Spacing0.283 in
Backset Spacing7.2 mm
ColorWhite
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions15
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 80$ 7.38
NewarkEach 1$ 11.58
100$ 9.46
250$ 8.67
500$ 8.06
1000$ 7.57

Description

General part information

773-E15 Series

15 Position D-Sub Plug, Male Pins Connector
