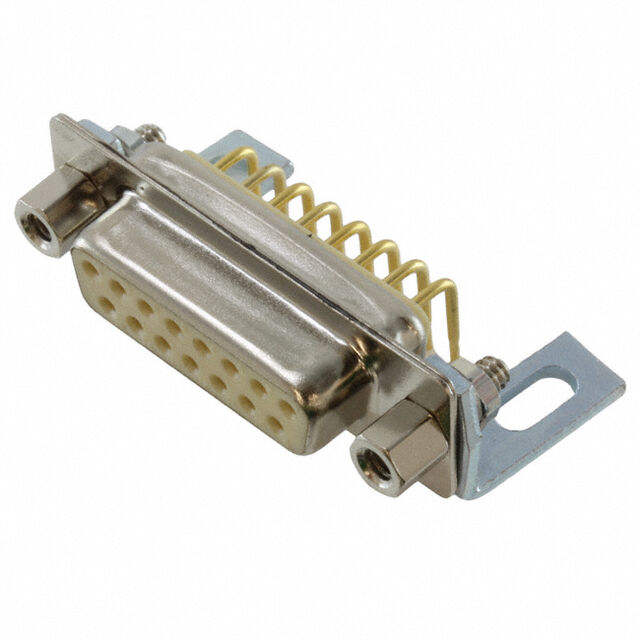

773-E15-213R141 - 773-E15-213R141

773-E15-213R141

Active
MH Connectors

IP67 15 / .318 /141 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN3D Product Image EN+3
773-E15-213R141 - 773-E15-213R141

773-E15-213R141

Active
MH Connectors

IP67 15 / .318 /141 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsMiscellaneous EN3D Product Image EN+3

Technical Specifications

Parameters and characteristics for this part

Specification773-E15-213R141
Backset Spacing0.283 in
Backset Spacing7.2 mm
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesMounting Brackets
Flange FeatureFemale Screwlock (4-40), Mating Side
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions15
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 28$ 14.46
NewarkEach 1$ 19.41
50$ 17.61
100$ 16.14
250$ 14.99
500$ 14.01

Description

General part information

773-E15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
