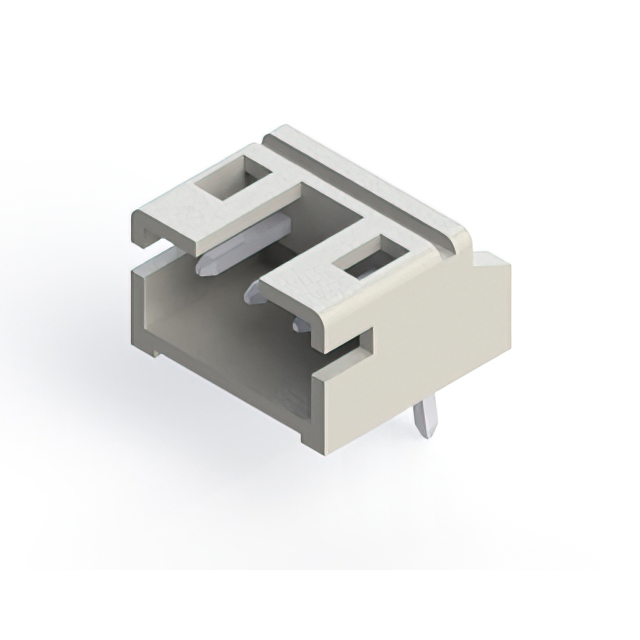

140-503-415-000

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-503-415-000

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-503-415-000	140-503 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.185 - 0.24 in
Insulation Height	5 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount, Right Angle, Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-503 Series

2.0MM PITCH CONNECTOR WITH 3 P.C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Insulation Material	Voltage Rating	Connector Type	Contact Type	Number of Positions Loaded	Material Flammability Rating	Style	Termination	Mounting Type	Current Rating (Amps)	Shrouding	Fastening Type	Contact Finish - Post	Contact Material	Contact Shape	Insulation Color	Insulation Height	Insulation Height	Features	Insulation Height [custom]	Insulation Height [custom]	Contact Termination	Note	Pitch [x]	Pitch [x]	Color
EDAC Inc. 140-503-415-100	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Through Hole, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.185 in	4.7 mm
EDAC Inc. 140-503-417-060	-25 °C	85 °C	0.079 in	2 mm	1	Nylon 9T, Polyamide (PA9T)	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Surface Mount, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural			Solder Retention	5.51 mm	0.217 in
EDAC Inc. 140-503-415-001	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Kinked Pin, Solder	Through Hole	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.24 in	6.1 mm
EDAC Inc. 140-503-415-101	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Through Hole	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.24 in	6.1 mm
EDAC Inc. 140-503-415-000	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Kinked Pin, Solder	Through Hole, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.197 in	5 mm
EDAC Inc. 140-503-210-011	-25 °C	85 °C			1	Polyamide (PA66), Nylon 6/6		Receptacle	Female Socket					Free Hanging (In-Line)			Detent Lock							Polarizing Key			Crimp	Contacts Not Included	0.079 in	2 mm	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.08
		25	$ 0.07
		50	$ 0.06
		100	$ 0.06
		300	$ 0.05
		500	$ 0.05
		1000	$ 0.04
		2500	$ 0.04

Description

General part information

140-503 Series

Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
