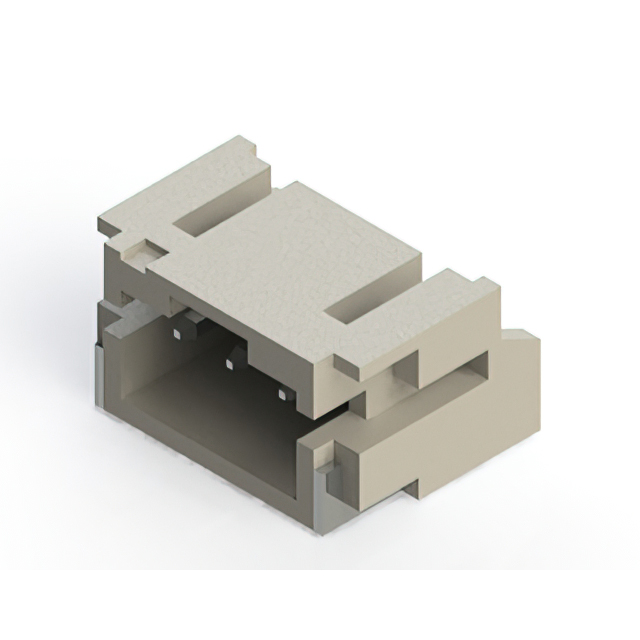

140-503-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 SUR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-503-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 SUR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.34
		10	$ 0.30
		25	$ 0.27
		50	$ 0.26
		100	$ 0.24
		250	$ 0.22
		500	$ 0.21
	Digi-Reel®	1	$ 0.34
		10	$ 0.30
		25	$ 0.27
		50	$ 0.26
		100	$ 0.24
		250	$ 0.22
		500	$ 0.21
	Tape & Reel (TR)	1000	$ 0.19

Description

General part information

140-503 Series

Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-503-417-060	140-503 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	-	0.185 - 0.24 in
Insulation Height	-	4.7 - 6.1 mm
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Polyamide (PA9T), Nylon 9T	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Through Hole, Right Angle, Surface Mount, Right Angle, Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-503 Series

2.0MM PITCH CONNECTOR WITH 3 P.C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Insulation Material	Voltage Rating	Connector Type	Contact Type	Number of Positions Loaded	Material Flammability Rating	Style	Termination	Mounting Type	Current Rating (Amps)	Shrouding	Fastening Type	Contact Finish - Post	Contact Material	Contact Shape	Insulation Color	Insulation Height	Insulation Height	Features	Insulation Height [custom]	Insulation Height [custom]	Contact Termination	Note	Pitch [x]	Pitch [x]	Color
EDAC Inc. 140-503-415-100	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Through Hole, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.185 in	4.7 mm
EDAC Inc. 140-503-417-060	-25 °C	85 °C	0.079 in	2 mm	1	Nylon 9T, Polyamide (PA9T)	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Surface Mount, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural			Solder Retention	5.51 mm	0.217 in
EDAC Inc. 140-503-415-001	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Kinked Pin, Solder	Through Hole	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.24 in	6.1 mm
EDAC Inc. 140-503-415-101	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Solder	Through Hole	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.24 in	6.1 mm
EDAC Inc. 140-503-415-000	-40 °C	105 ░C	0.079 in	2 mm	1	Polyamide (PA66), Nylon 6/6	100 VAC	Header	Male Pin	All	UL94 V-0	Board to Cable/Wire	Kinked Pin, Solder	Through Hole, Right Angle	2 A	Shrouded - 4 Wall	Detent Lock	Tin	Brass	Square	Natural	0.197 in	5 mm
EDAC Inc. 140-503-210-011	-25 °C	85 °C			1	Polyamide (PA66), Nylon 6/6		Receptacle	Female Socket					Free Hanging (In-Line)			Detent Lock							Polarizing Key			Crimp	Contacts Not Included	0.079 in	2 mm	Natural
