N3431-5302RB

Active

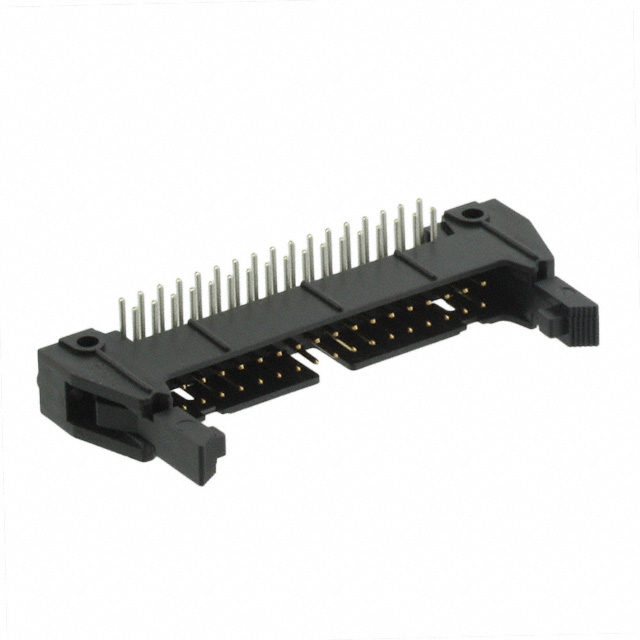

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 34 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

N3431-5302RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 34 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.69
		10	$ 5.17
		200	$ 4.55
		600	$ 3.87
		1000	$ 3.30
Newark	Each	1	$ 5.54
		10	$ 5.31
		25	$ 4.90
		50	$ 4.63
		100	$ 4.42
		250	$ 3.90
		500	$ 3.78
		1000	$ 3.21

Description

General part information

N3431 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Drawing EN

Datasheet

Specification	N3431-5302RB	N3431 Series

	-	-
Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Push-Pull, Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black
Insulation Height	0.34 in	0.31 - 0.68 in
Insulation Height	8.64 mm	7.87 - 17.27 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polybutylene Terephthalate (PBT), Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	34	34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Wire Wrap, Press-Fit
