N3431-5002

Active

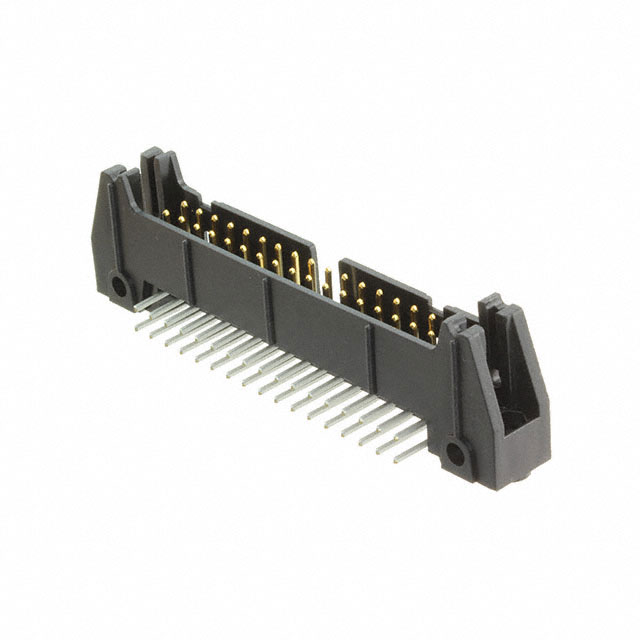

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3431-5002

Active

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N3431 Series

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3431-5002	N3431 Series

	-	-
Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull, Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black
Insulation Height	0.34 in	0.31 - 0.68 in
Insulation Height	8.64 mm	7.87 - 17.27 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polybutylene Terephthalate (PBT), Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	34	34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Wire Wrap, Press-Fit

N3431 Series

CONN HEADER R/A 34POS 2.54MM

Part	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Shrouding	Connector Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Insulation Color	Number of Positions Loaded	Insulation Material	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Mounting Type	Contact Material	Number of Positions	Fastening Type	Overall Contact Length	Overall Contact Length
3M N3431-5002	Tin-Lead	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.34 in	8.64 mm	2	Square	Shrouded - 4 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Push-Pull
3M N3431-1302RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.31 in	7.87 mm	2	Square	Shrouded - 3 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Long
3M N3431-3005EB		30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.34 in	8.64 mm	2	Square	Shrouded - 3 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	15.49 mm	0.61 in	1.75 A	Wire Wrap	Black	All	Polybutylene Terephthalate (PBT), Glass Filled	Male Pin	Gold			Board to Board, Cable	Through Hole, Right Angle	Phosphor Bronze	34	Push-Pull
3M N3431-1202RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.31 in	7.87 mm	2	Square	Shrouded - 3 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Short
3M N3431-6203RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.68 in	17.27 mm	2	Square	Shrouded - 4 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	3.94 mm	0.155 "	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole	Copper Alloy	34	Latch Lock/Eject Hooks, Short	0.695 in	17.65 mm
3M N3431-2302RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.68 in	17.27 mm	2	Square	Shrouded - 3 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole	Copper Alloy	34	Latch Lock/Eject Hooks, Long	0.652 in	16.56 mm
3M N3431-5302	Tin-Lead	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.34 in	8.64 mm	2	Square	Shrouded - 4 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Long
3M N3431-1303RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.31 in	7.87 mm	2	Square	Shrouded - 3 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	3.94 mm	0.155 "	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Long
3M N3431-D302RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.66 in	16.76 mm	2	Square	Shrouded - 3 Wall	Header, Stackable (2)	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in		Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Long
3M N3431-5302RB	Tin	30 Áin	0.76 Ám	6.1 mm	0.24 in	0.1 in	2.54 mm	0.34 in	8.64 mm	2	Square	Shrouded - 4 Wall	Header	UL94 V-0	2.54 mm	0.1 in	105 ░C	-55 °C	2.84 mm	0.112 in	1.75 A	Solder	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Gold	200 µin	5.08 µm	Board to Board, Cable	Through Hole, Right Angle	Copper Alloy	34	Latch Lock/Eject Hooks, Long
