DMN2991UFO-7B
ActiveDiodes Inc

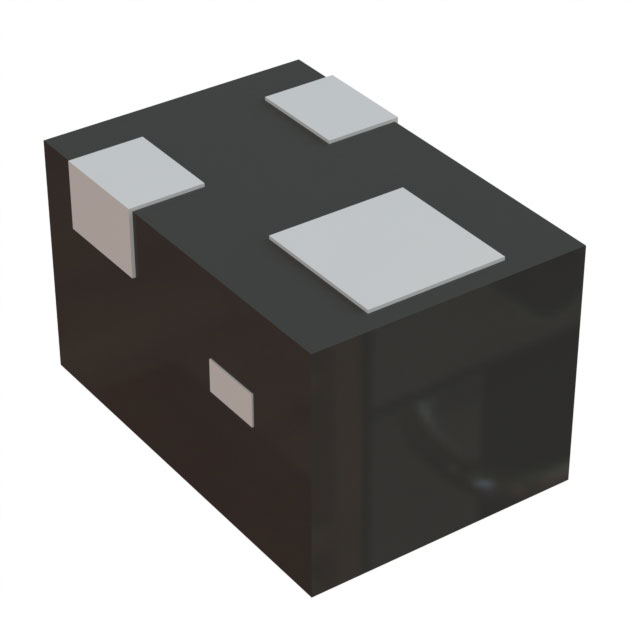

TRANSISTOR MOSFET N-CHANNEL 20V 0.54A 3-PIN X2-DFN T/R
Deep-Dive with AI
Search across all available documentation for this part.
DMN2991UFO-7B
ActiveDiodes Inc
TRANSISTOR MOSFET N-CHANNEL 20V 0.54A 3-PIN X2-DFN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN2991UFO-7B |
|---|---|
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 1.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 0.35 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 21.5 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-XFDFN |
| Power Dissipation (Max) | 440 mW |
| Rds On (Max) @ Id, Vgs [Max] | 990 mOhm |
| Supplier Device Package | X2-DFN0604-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.05 | |||
| 5000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.14 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.05 | |||
| 5000 | $ 0.04 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
Description
General part information
DMN2991UDA Series
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
