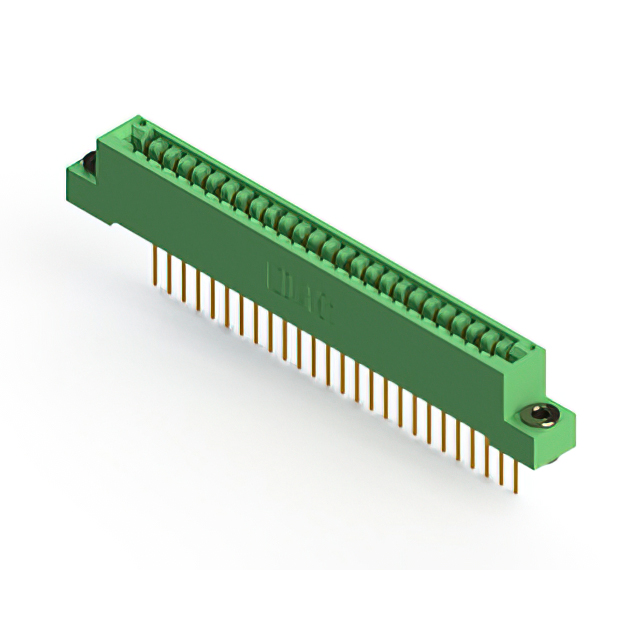

846-026-540-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 26POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-026-540-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 26POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-026-540-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
846-026 Series
...
| Part | Termination Rows | Flange Feature | Pitch [x] | Pitch [x] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions/Bay/Row [custom] | Termination | Card Type | Number of Rows | Mounting Type | Material - Insulation | Gender | Contact Finish | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | M3 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Solder | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | ||
EDAC Inc. | 2 | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Wire Wrap | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | |||
EDAC Inc. | 2 | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Solder | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Green | 26 | Solder | Non Specified - Single Edge | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | ||
EDAC Inc. | 1 | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Green | 26 | Wire Wrap | Non Specified - Single Edge | 1 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2.95 mm | 0.116 in |
EDAC Inc. | 1 | Top Mount Opening Unthreaded | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Green | 26 | Wire Wrap | Non Specified - Single Edge | 1 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 3.96 mm | 0.156 in |
EDAC Inc. | 2 | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Wire Wrap | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2.95 mm | 0.116 in |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Wire Wrap | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | |||
EDAC Inc. | 2 | M3 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Green | 13 | Solder | Non Specified - Dual Edge | 2 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | ||
EDAC Inc. | 1 | Floating Bobbin Top Mount Opening | 0.125 in | 3.18 mm | 26 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Green | 26 | Solder | Non Specified - Single Edge | 1 | Through Hole | Diallyl Phthalate (DAP) | Female | Gold | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-026 Series
26 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
