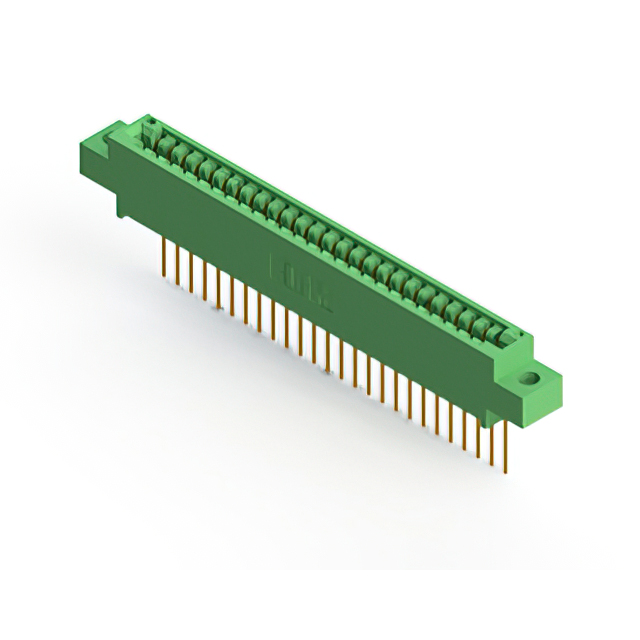

846-026-541-604

Active

EDAC Inc.

CONN EDGE SGL FMALE 26POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-026-541-604

Active

EDAC Inc.

CONN EDGE SGL FMALE 26POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-026-541-604

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	26
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

846-026 Series

...

Part	Termination Rows	Flange Feature	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions/Bay/Row [custom]	Termination	Card Type	Number of Rows	Mounting Type	Material - Insulation	Gender	Contact Finish	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 846-026-526-807	2	M3 Threaded Insert Top Mount Opening	0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Solder	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever
EDAC Inc. 846-026-540-201	2		0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever
EDAC Inc. 846-026-526-202	2	Flush Mount Top Opening Unthreaded	0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Solder	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	3.25 mm	0.128 "
EDAC Inc. 846-026-559-608	1	4-40 Threaded Insert Top Mount Opening	0.125 in	3.18 mm	26	125 °C	-40 °C	Single	10 Áin	0.25 Ám	Green	26	Solder	Non Specified - Single Edge	1	Through Hole Right Angle	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever
EDAC Inc. 846-026-540-103	1	Floating Bobbin Flush Mount	0.125 in	3.18 mm	26	125 °C	-40 °C	Single	10 Áin	0.25 Ám	Green	26	Wire Wrap	Non Specified - Single Edge	1	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2.95 mm	0.116 in
EDAC Inc. 846-026-541-604	1	Top Mount Opening Unthreaded	0.125 in	3.18 mm	26	125 °C	-40 °C	Single	10 Áin	0.25 Ám	Green	26	Wire Wrap	Non Specified - Single Edge	1	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	3.96 mm	0.156 in
EDAC Inc. 846-026-541-203	2	Floating Bobbin Flush Mount	0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2.95 mm	0.116 in
EDAC Inc. 846-026-541-201	2		0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever
EDAC Inc. 846-026-520-807	2	M3 Threaded Insert Top Mount Opening	0.125 in	3.18 mm	26	125 °C	-40 °C	Dual	10 Áin	0.25 Ám	Green	13	Solder	Non Specified - Dual Edge	2	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever
EDAC Inc. 846-026-522-603	1	Floating Bobbin Top Mount Opening	0.125 in	3.18 mm	26	125 °C	-40 °C	Single	10 Áin	0.25 Ám	Green	26	Solder	Non Specified - Single Edge	1	Through Hole	Diallyl Phthalate (DAP)	Female	Gold	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 37.79
Newark	Each	1	$ 49.91
		100	$ 41.59
		250	$ 39.82
		500	$ 38.18
		1000	$ 33.50

Description

General part information

846-026 Series

26 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
