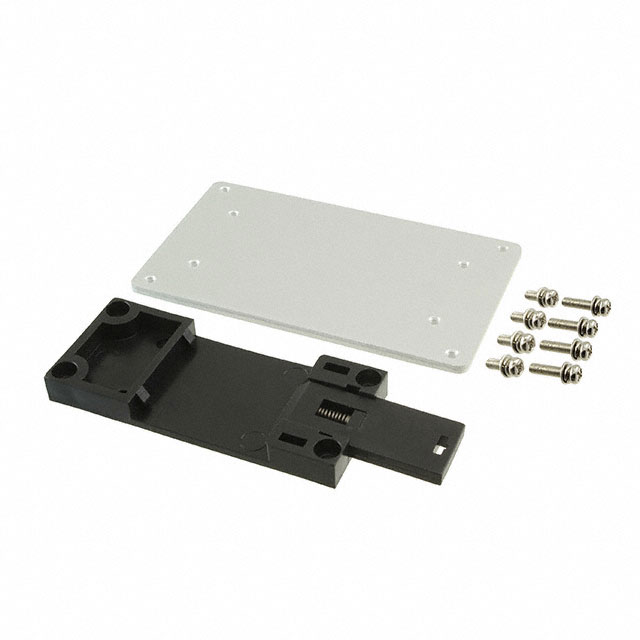

DTE20 DIN CLIP

Active

XP POWER

DIN RAIL CLIP FOR DTE20 DIN RAIL

Search across all available documentation for this part.

Active

XP POWER

DIN RAIL CLIP FOR DTE20 DIN RAIL

Technical Specifications

Parameters and characteristics for this part

Specification	DTE20 DIN CLIP

Accessory Type	DIN Rail Clip
For Use With/Related Products	DTE20 DIN Rail

Part	For Use With/Related Products	Accessory Type	Standard Number	Applications	Mounting Type	Voltage - Output 1	Type	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
XP POWER DTE20 DIN CLIP	DTE20 DIN Rail	DIN Rail Clip
XP POWER DTE2048S48			62368-1	ITE (Commercial)	Chassis Mount	48 V	Enclosed	20 W	420 mA	90 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S12-D			62368-1	ITE (Commercial)		12 V		20 W	1.67 A	90 %	CB CE cURus			1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C	DC	36 V	9 V
XP POWER DTE2024S24			62368-1	ITE (Commercial)	Chassis Mount	24 V	Enclosed	20 W	835 mA	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2048S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	89 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN RAIL CLIP FOR DTE20 DIN RAIL
