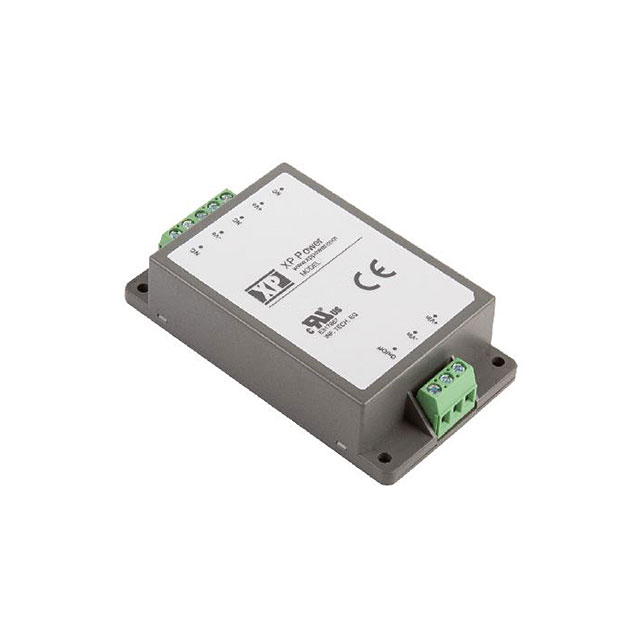

DTE2024S24

Active

XP POWER

DC/DC CONVERTER 24V 20W

Search across all available documentation for this part.

Active

XP POWER

DC/DC CONVERTER 24V 20W

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Accessory Type	Standard Number	Applications	Mounting Type	Voltage - Output 1	Type	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
XP POWER DTE20 DIN CLIP	DTE20 DIN Rail	DIN Rail Clip
XP POWER DTE2048S48			62368-1	ITE (Commercial)	Chassis Mount	48 V	Enclosed	20 W	420 mA	90 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S12-D			62368-1	ITE (Commercial)		12 V		20 W	1.67 A	90 %	CB CE cURus			1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C	DC	36 V	9 V
XP POWER DTE2024S24			62368-1	ITE (Commercial)	Chassis Mount	24 V	Enclosed	20 W	835 mA	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2048S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	89 %	CB CE cURus	18 V	75 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C
XP POWER DTE2024S5V1			62368-1	ITE (Commercial)	Chassis Mount	5.1 V	Enclosed	20 W	4 A	90 %	CB CE cURus	9 V	36 V	1	3.78 "	54 mm	2.13 in	0.92 "	96 mm	23.3 mm	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 835mA 36V Input
