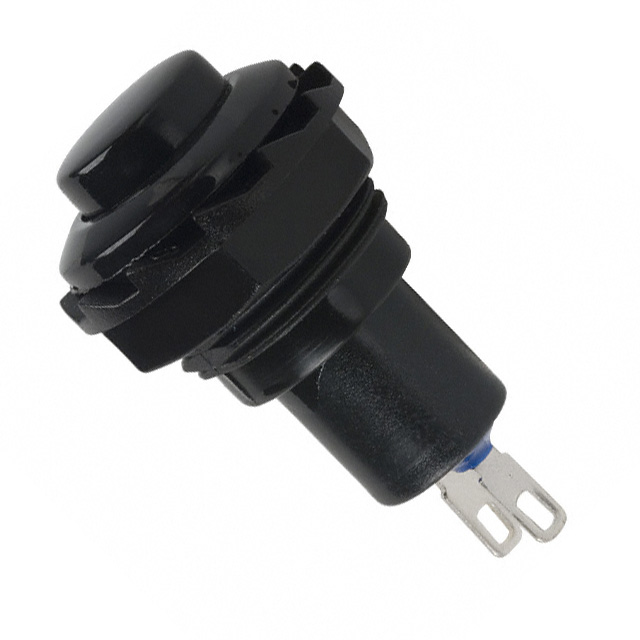

RP3502BBLK

Active

E-Switch

SWITCH PUSH SPST-NC 3A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NC 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	RP3502BBLK

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	6000 Cycles
Mechanical Life	6000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V

Part	Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Switch Function	Actuator Marking	Mounting Type	Termination Style	Circuit	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Color - Actuator/Cap
E-Switch RP3502MABLK	Standard	6000 Cycles	12.7 mm	Button Round	Off-Mom	No Marking	Panel Mount Front	Solder Lug	SPST-NO	6000 Cycles	3 A	120 V	Black
E-Switch RP3502MAGRN	Standard	6000 Cycles	12.7 mm	Button Round	Off-Mom	No Marking	Panel Mount Front	Solder Lug	SPST-NO	6000 Cycles	3 A	120 V	Green
E-Switch RP3502ABLK	Standard	6000 Cycles	12.7 mm	Button Round	Off-Mom	No Marking	Panel Mount Front	Solder Lug	SPST-NO	6000 Cycles	3 A	120 V	Black
E-Switch RP3502BBLK	Standard	6000 Cycles	12.7 mm	Button Round	On-Mom	No Marking	Panel Mount Front	Solder Lug	SPST-NC	6000 Cycles	3 A	120 V	Black
E-Switch RP3502MBRED	Standard	6000 Cycles	12.7 mm	Button Round	On-Mom	No Marking	Panel Mount Front	Solder Lug	SPST-NC	6000 Cycles	3 A	120 V	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
