RP3502 Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Current Rating	Termination Style	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Type	Circuit	Actuator Marking
E-Switch RP3502BGRN	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Green	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	On-Mom	Standard	SPDT

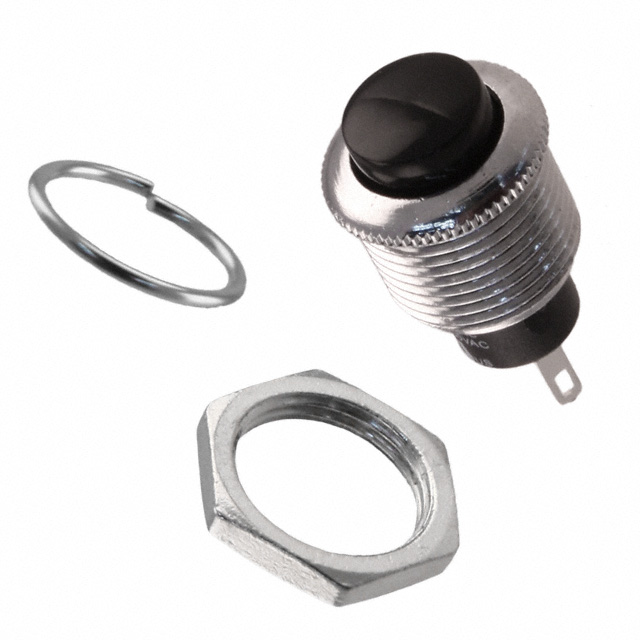

E-Switch RP3502MABLK	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Black	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502MAGRN	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Green	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502MARED	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Red	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502ABLK	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Black	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502BBLK	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Black	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBRED	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Red	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBGRN	6000 Cycles	6000 Cycles	12.7 mm	Circular	120 V	Button Round	Green	3 A	Solder Lug	Front Panel Mount	-20 °C	65 °C	On-Mom	Standard	SPST-NC	No Marking
