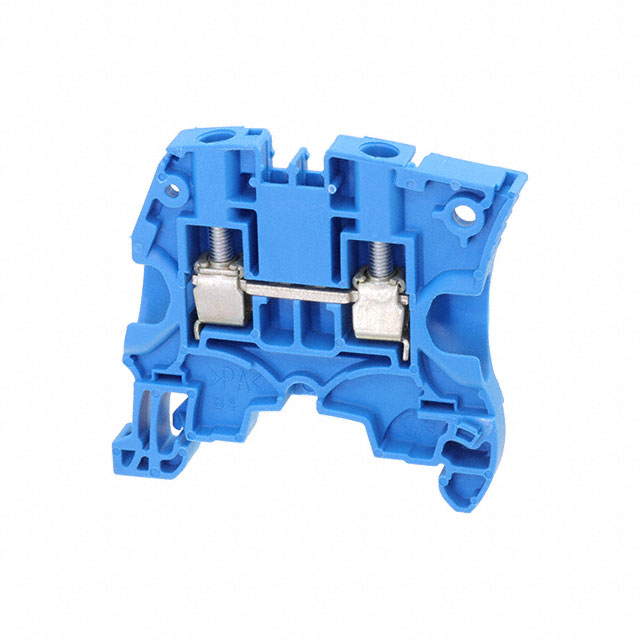

1SNK506020R0000
ActiveTE Connectivity Raychem Cable Protection
ZS6-BL
Deep-Dive with AI
Search across all available documentation for this part.
1SNK506020R0000
ActiveTE Connectivity Raychem Cable Protection
ZS6-BL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNK506020R0000 |
|---|---|
| Color | Blue |
| Current - IEC | 41 A |
| Current - UL | 30 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10.5 mm |
| Terminal - Width [y] | 6 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.91 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.85 | |||
| 5000 | $ 0.75 | |||
Description
General part information
ENTRELEC SNK Series
Screw Clamp Terminal Block, Feed-Through, Blue, 6 mm [.236 in] Spacing, 2 Position, Screw Terminal, Power & Signal, DIN Rail, 600 VAC, ENTRELEC SNK
