Technical Specifications
Parameters and characteristics for this part

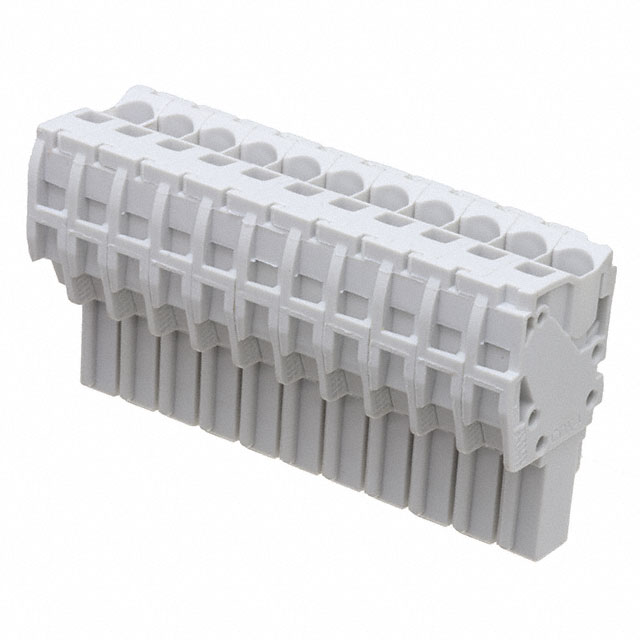

| Specification | 1SNK806724R0000 |
|---|---|
| Color | Gray |
| Current - IEC | 30 A |
| Current - UL | 30 A |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 36.32 mm |
| Insulation Height | 1.43 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 11 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Positions Per Level | 11 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm˛ [Max] | 6 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.5 mm˛ |
| Wire Strip Length | 12.5 mm |
ENTRELEC SNK Series
...
| Part | Color | Type | For Use With/Related Products | Number of Positions | Pitch [x] | Pitch [x] | Legend | Current - IEC | Current - UL | Voltage - IEC | Number of Levels | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Terminal - Width [y] | Voltage - UL [custom] | Termination Style | Stripping Length | Disconnect Type | Material Flammability Rating | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Material - Insulation | Legend [Min] | Legend [Max] | Mounting Type | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Wire Strip Length | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Housing Material | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Gray | Component Plug | SNK ZDP ZK ZP ZS Series | 1 | |||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | White | Label Snap In | SNK Series | 0.236 in | 6 mm | Letters A | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Gray | Disconnect | 2 | 17 A | 18 A | 630 V | 1 | 0.2 mm² | 4 mm² | 5.2 mm | 300 V | Push In Spring | 11 mm | Open | UL94 V-0 | 12 AWG | 26 AWG | Nylon Polyamide (PA) | |||||||||||||||||
TE Connectivity Raychem Cable Protection | Yellow | Feed Through | 4 | 40 A | 30 A | 800 V | 2 | 0.2 mm² | 6 mm² | 6 mm | 300 V | Screw | 10 mm | UL94 V-0 | 10 AWG | 24 AWG | Nylon Polyamide (PA) | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | White | Label Snap In | SNK Series | 0.236 in | 6 mm | Numbers 4 | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | White | Label Snap In | SNK Series | 0.236 in | 6 mm | Letters L | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | White | Label Snap In | SNK Series | 111 | 120 | ||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | White | Label Snap In | SNK Series | Letters S | |||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Gray | Plug Female Sockets | 11 | 30 A | 30 A | 1 kV | 1 | Screwless - Spring Cage Tension Clamp | 10 AWG | 26 AWG | Free Hanging (In-Line) | 6 mm˛ | 0.5 mm˛ | 12.5 mm | 36.32 mm | 1.43 in | -55 °C | 110 °C | 11 | Polyamide (PA) Nylon | |||||||||||||||
TE Connectivity Raychem Cable Protection | Blue | Feed Through | 2 | 41 A | 30 A | 1 kV | 1 | 0.2 mm² | 6 mm² | 6 mm | Screw | 10.5 mm | UL94 V-0 | 10 AWG | 24 AWG | Nylon Polyamide (PA) | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.59 | |
Description
General part information
ENTRELEC SNK Series
Female Plug Terminal Block, Gray, 6 mm [.236 in] Spacing, 2 Position, -55 – 110 °C [-67 – 230 °F], ENTRELEC SNK
