132169RP
ActiveAmphenol RF
RF / COAXIAL ADAPTER, SMA, JACK, SMA RP, JACK, STRAIGHT ADAPTER, 50 OHM
Deep-Dive with AI
DocumentsProduct Change Notice EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 132169RP |
|---|---|
| Adapter Series | SMA to RP-SMA |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | RP-SMA Jack, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.68 | |
| 10 | $ 10.51 | |||
| 25 | $ 9.90 | |||
| 50 | $ 9.65 | |||
| 100 | $ 9.39 | |||
| 250 | $ 8.38 | |||
| 500 | $ 7.87 | |||
| 1000 | $ 6.96 | |||
Description
General part information
132169 Series

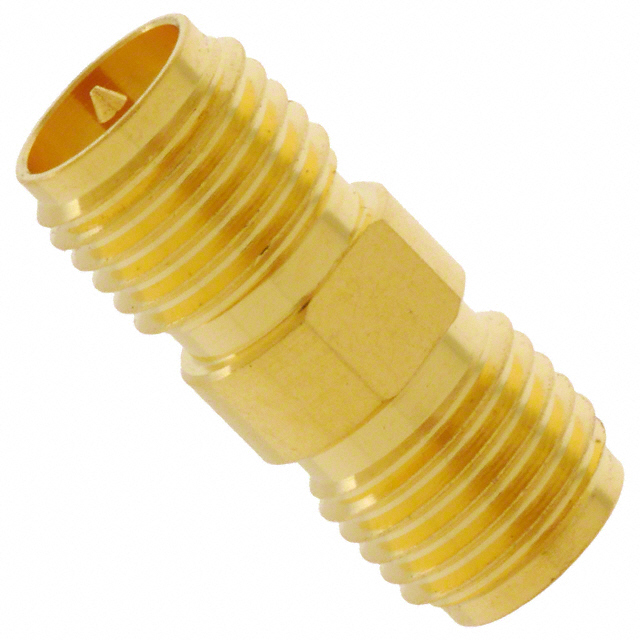

The 132169RP is a SMA Jack to SMA RP Jack Adapter with gold-plated beryllium copper contacts. This adapter is made of brass with gold plated finish and comes with a PTFE insulator.
