132169RP-RP

Active

Amphenol RF

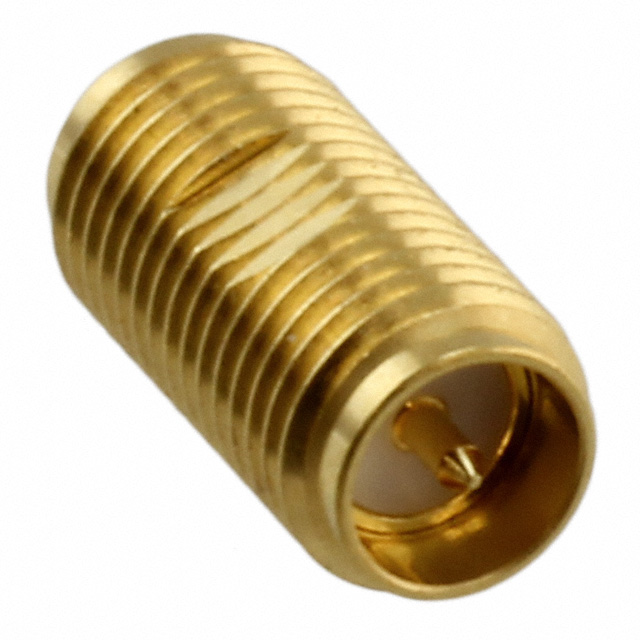

RP-SMA JACK TO RP-SMA JACK ADAPTER 50 OHM STRAIGHT

Search across all available documentation for this part.

Active

Amphenol RF

RP-SMA JACK TO RP-SMA JACK ADAPTER 50 OHM STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	132169RP-RP

Adapter Series	RP-SMA to RP-SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	RP-SMA Jack, Male Pin
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Series	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Frequency - Max [Max]	Center Contact Plating	Adapter Type	Conversion Type	Impedance	Center Contact Material	Body Finish	Convert From (Adapter End)	Mounting Type	Style	Convert To (Adapter End)	Dielectric Material
Amphenol RF 132169RP-RP	RP-SMA to RP-SMA	Brass	-65 ░C	165 °C	Male to Male	18 GHz	Gold	Jack to Jack	Same Series	50 Ohms	Brass	Gold	RP-SMA Jack Male Pin	Free Hanging (In-Line)	Straight	Male Pin RP-SMA Jack	Polytetrafluoroethylene (PTFE)
Amphenol RF 132169RP	SMA to RP-SMA	Brass	-65 ░C	165 °C		18 GHz	Gold	Jack to Jack	Between Series	50 Ohms	Beryllium Copper	Gold	Female Socket SMA Jack	Free Hanging (In-Line)	Straight	Male Pin RP-SMA Jack	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector RP-SMA Jack, Male Pin To RP-SMA Jack, Male Pin 50 Ohms
