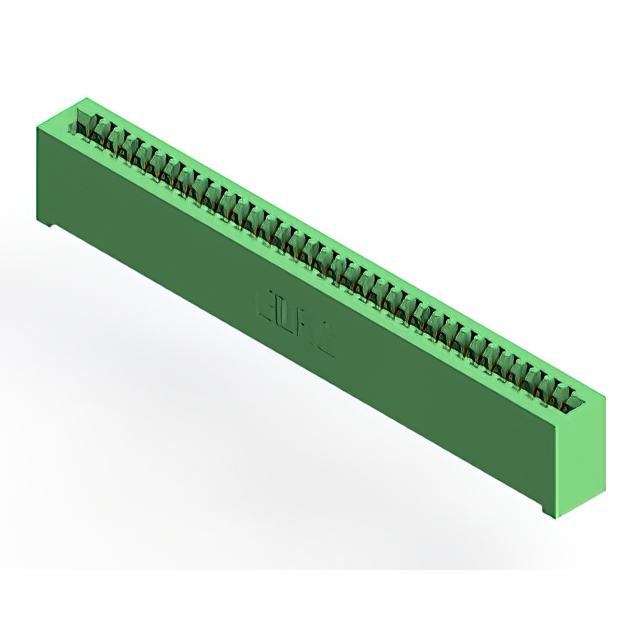

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-035-521-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-035-521-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 35 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
342-035 Series
| Part | Gender | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Contact Finish | Read Out | Number of Positions/Bay/Row [custom] | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Polyester Thermoplastic | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 |
EDAC Inc. | Female | Polyester Thermoplastic | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder Wire Wrap | Through Hole Right Angle | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 |
EDAC Inc. | Female | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder Wire Wrap | Through Hole Right Angle | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 | ||
EDAC Inc. | Female | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder Wire Wrap | Through Hole Right Angle | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 | ||
EDAC Inc. | Female | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 | |||
EDAC Inc. | Female | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 |
EDAC Inc. | Female | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 | ||
EDAC Inc. | Female | Polyester Thermoplastic | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 |
EDAC Inc. | Female | Polyester Thermoplastic | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Solder | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 | |||
EDAC Inc. | Female | Polyester Thermoplastic | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Through Hole | Gold | Single | 35 | Green | 10 Áin | 0.25 Ám | 35 | 2.54 mm | 0.1 in | Cantilever | 1 | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-035 Series
35 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
