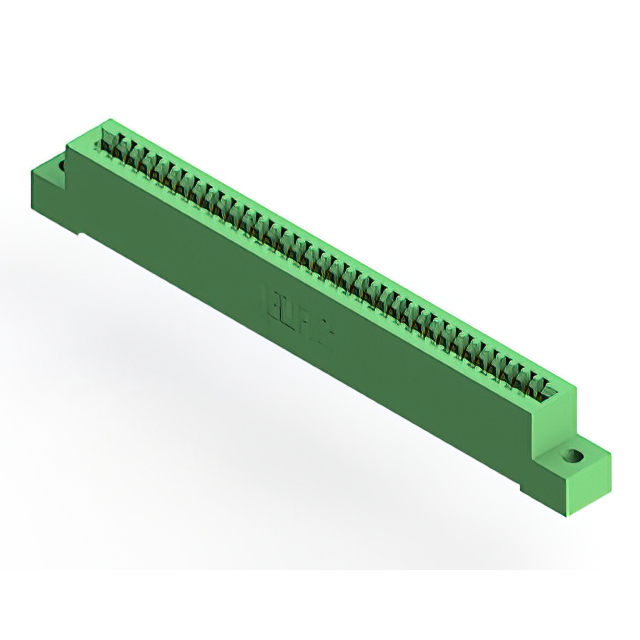

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

342-035-524-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-035-524-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

342-035 Series

Part	Gender	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Contact Finish	Read Out	Number of Positions/Bay/Row [custom]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Termination Rows
EDAC Inc. 342-035-524-102	Female	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-559-103	Female	Polyester Thermoplastic	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder Wire Wrap	Through Hole Right Angle	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-559-108	Female	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder Wire Wrap	Through Hole Right Angle	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-558-108	Female	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder Wire Wrap	Through Hole Right Angle	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-521-101	Female	Polyester Thermoplastic				Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-541-104	Female	Polyester Thermoplastic	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-542-107	Female	Polyester Thermoplastic			Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-521-102	Female	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-524-101	Female	Polyester Thermoplastic				Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Solder	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
EDAC Inc. 342-035-540-112	Female	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Through Hole	Gold	Single	35	Green	10 Áin	0.25 Ám	35	2.54 mm	0.1 in	Cantilever	1	1
