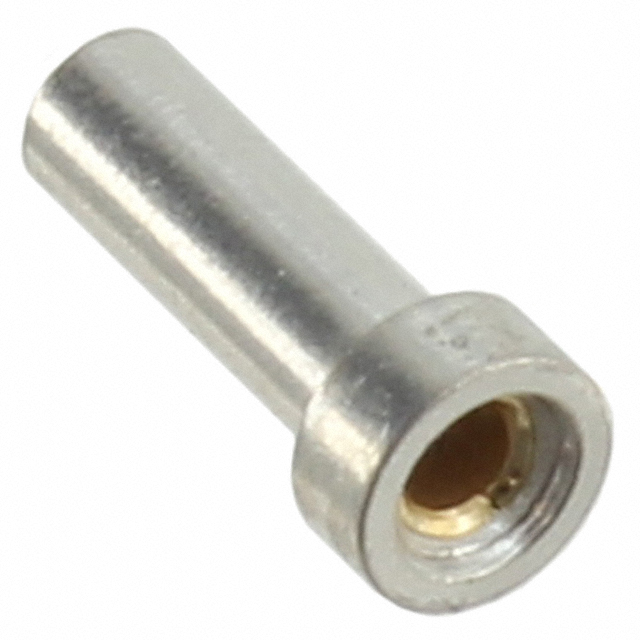

0566-2-15-01-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0566-2-15-01-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0566-2-15-01-21-27-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter	1.47 mm
Flange Diameter	0.058 in
Length - Overall [x]	3.51 mm
Length - Overall [x]	0.138 in
Mounting Hole Diameter [diameter]	0.99 mm
Mounting Hole Diameter [diameter]	0.039 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	0.138 "
Socket Depth	3.51 mm
Tail Type	No Tail
Termination	Solder

0566-2 Series

Part	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Flange Diameter	Flange Diameter	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0566-2-15-80-21-27-10-0	3.51 mm	0.138 in	2.11 mm	0.083 in	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.76 Ám	30 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-80-21-14-10-0	3.51 mm	0.138 in	2.11 mm	0.083 in	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-80-21-84-10-0	3.51 mm	0.138 in	2.11 mm	0.083 in	No Tail	-55 °C	125 °C	Beryllium Copper	Tin	2.54 µm	100 µin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-01-21-14-10-0	3.51 mm	0.138 in	3.51 mm	0.138 "	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-15-21-14-10-0	3.51 mm	0.138 in	2.11 mm	0.083 in	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-15-21-27-10-0	3.51 mm	0.138 in	3.51 mm	0.138 "	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.76 Ám	30 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in
Mill-Max Manufacturing Corp. 0566-2-15-01-21-27-10-0	3.51 mm	0.138 in	3.51 mm	0.138 "	No Tail	-55 °C	125 °C	Beryllium Copper	Gold	0.76 Ám	30 Áin	0.79 mm	0.031 in	Solder	1.47 mm	0.058 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.99 mm	0.039 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 1.03
		25	$ 0.99
		50	$ 0.97
		100	$ 0.93
		250	$ 0.84
		500	$ 0.76
		1000	$ 0.67
		3000	$ 0.61

Description

General part information

0566-2 Series

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder
