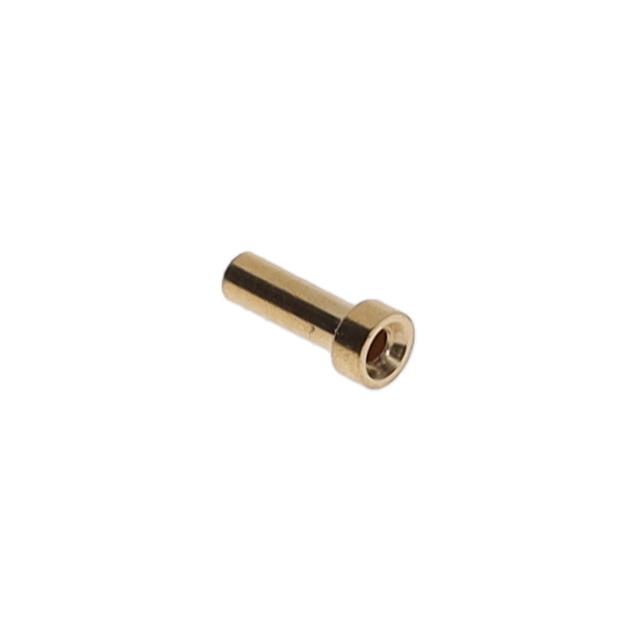

Specification	0566-2-15-15-21-14-10-0

Accepts Pin Diameter (Max)	0.022 in
Accepts Pin Diameter (Min)	0.015 in
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Beryllium Copper
Flange Diameter	0.058 in
Length - Overall	0.138 in
Mounting Hole Diameter	0.039 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pin Hole Diameter	0.031 in
Socket Depth	0.083 in
Tail Type	No Tail
Termination	Solder

0566-2 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Length - Overall	Termination	Contact Finish	Pin Hole Diameter	Mounting Hole Diameter	Contact Finish Thickness	Socket Depth	Tail Type	Contact Material	Flange Diameter	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)
Mill-Max Manufacturing Corp. 0566-2-15-80-21-27-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	30 µin	0.083 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-80-21-14-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	10 Ąin	0.083 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-80-21-84-10-0	125 °C	-55 °C	0.138 in	Solder	Tin	0.031 in	0.039 in	100 µin	0.083 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-01-21-14-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	10 Ąin	0.138 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-15-21-14-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	10 Ąin	0.083 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-15-21-27-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	30 µin	0.138 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-01-21-02-10-0	125 °C	-55 °C	0.138 in	Solder	Tin-Lead	0.031 in	0.039 in	100 µin	0.138 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
Mill-Max Manufacturing Corp. 0566-2-15-01-21-27-10-0	125 °C	-55 °C	0.138 in	Solder	Gold	0.031 in	0.039 in	30 µin	0.138 in	No Tail	Beryllium Copper	0.058 in	0.015 in	0.022 in
