UF80A23-BWHR

Active

Mechatronics Fan Group

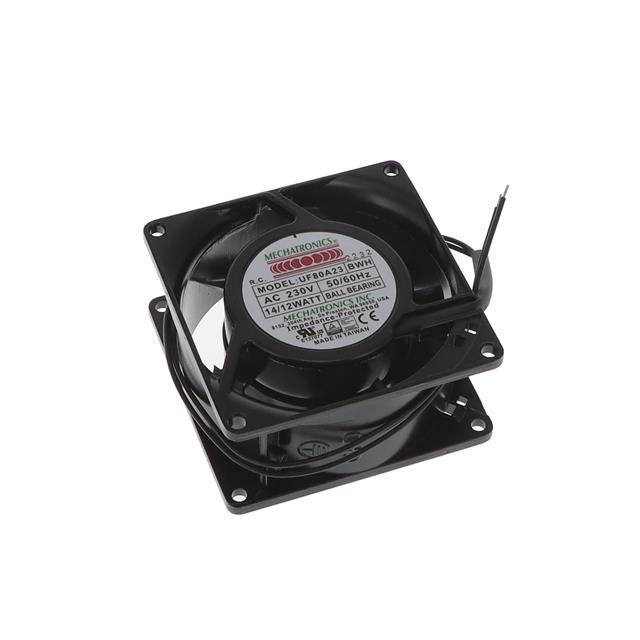

FAN AXIAL 80X38MM 230VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF80A23-BWHR

Active

Mechatronics Fan Group

FAN AXIAL 80X38MM 230VAC WIRE

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.74
		10	$ 18.94
		25	$ 18.22

Description

General part information

UF80A Series

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 30.0 CFM (0.840m³/min) 2 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF80A23-BWHR	UF80A Series

Air Flow	0.84 mł/min	0.7 - 0.952 mł/min
Air Flow	30 CFM	25 - 34 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL, CE
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	60 mA	50 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Metal
Material - Frame	Aluminum	Aluminum
Noise	36 dB	32 - 40 dB
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	12 W	9 - 12 W
RPM	3000 RPM	2400 - 3250 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	0.22 in H2O	0.22 - 0.26 in H2O
Static Pressure	54.8 Pa	54.8 - 64.8 Pa
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	0.617 lb	0.617 lb
Weight	279.87 g	279.87 - 280 g
Width [y]	38 mm	38 mm

UF80A Series

FAN AXIAL 80X38MM 230VAC TERM

Part	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Fan Type	Weight	Weight	Voltage - Rated	Power (Watts)	Noise	Current Rating (Amps)	Air Flow	Air Flow	Termination	Material - Frame	Approval Agency	Material - Blade	RPM	Static Pressure	Static Pressure
Mechatronics Fan Group UF80A23-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	32 dB	50 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80AM12-BWHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Wire Leads	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80AM23-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			230 VAC	11 W	40 dB(A)	70 mA	34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80AM12-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-SWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Sleeve	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
