UF80AM12-BWHR-F

Active

Mechatronics Fan Group

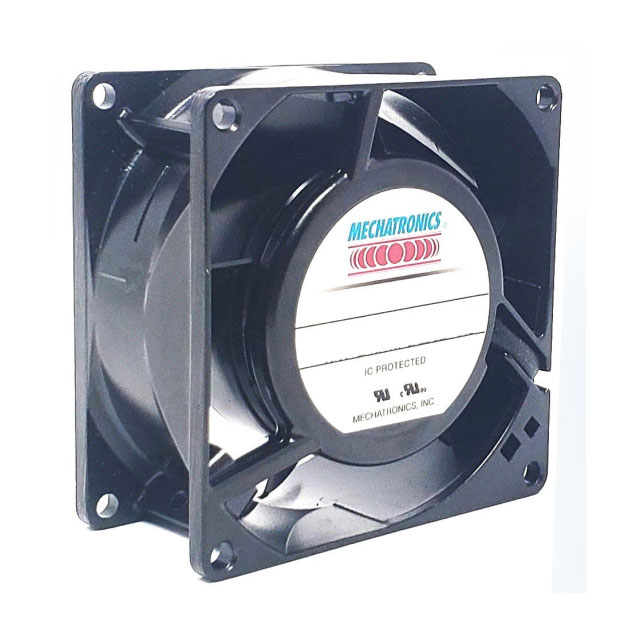

AC FAN AXIAL 80X80X38MM 130V, HI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UF80AM12-BWHR-F

Active

Mechatronics Fan Group

AC FAN AXIAL 80X80X38MM 130V, HI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF80AM12-BWHR-F	UF80A Series

Air Flow	34 CFM	25 - 34 CFM
Air Flow	0.952 m³/min	0.7 - 0.952 mł/min
Approval Agency	-	CE, cUL, TUV, UL, CE
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	-	50 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Thermal Overload Protector (TOP)
Material - Blade	Metal	Polybutylene Terephthalate (PBT), Metal
Material - Frame	Aluminum	Aluminum
Noise	40 dB(A)	32 - 40 dB
Operating Temperature [Max]	90 °C	70 - 90 °C
Operating Temperature [Max]	90 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	11 W	9 - 12 W
RPM	3250 RPM	2400 - 3250 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	0.26 in H2O	0.22 - 0.26 in H2O
Static Pressure	64.8 Pa	54.8 - 64.8 Pa
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	-	0.617 lb
Weight	-	279.87 - 280 g
Width [y]	38 mm	38 mm

UF80A Series

FAN AXIAL 80X38MM 230VAC TERM

Part	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Fan Type	Weight	Weight	Voltage - Rated	Power (Watts)	Noise	Current Rating (Amps)	Air Flow	Air Flow	Termination	Material - Frame	Approval Agency	Material - Blade	RPM	Static Pressure	Static Pressure
Mechatronics Fan Group UF80A23-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	32 dB	50 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80AM12-BWHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Wire Leads	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80AM23-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			230 VAC	11 W	40 dB(A)	70 mA	34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80AM12-BTHR-F	38 mm	80 mm	80 mm	90 °C	90 °C	-40 °C	-40 °C	Ball	Tubeaxial			115 VAC	11 W	40 dB(A)		34 CFM	0.952 m³/min	2 Terminals	Aluminum		Metal	3250 RPM	0.26 in H2O	64.8 Pa
Mechatronics Fan Group UF80A12-BWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTLR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	32 dB	100 mA	25 CFM	0.7 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	2400 RPM
Mechatronics Fan Group UF80A23-SWHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Sleeve	Tubeaxial	0.617 lb	279.87 g	230 VAC	12 W	36 dB	60 mA	30 CFM	0.84 mł/min	2 Wire Leads	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa
Mechatronics Fan Group UF80A12-BTHR	38 mm	80 mm	80 mm	70 °C	70 °C	-40 °C	-40 °C	Ball	Tubeaxial	0.617 lb	279.87 g	115 VAC	9 W	36 dB	120 mA	30 CFM	0.84 mł/min	2 Terminals	Aluminum	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3000 RPM	0.22 in H2O	54.8 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.85
		10	$ 38.22
		25	$ 36.77
		50	$ 34.35
		100	$ 31.69
		250	$ 31.21

Description

General part information

UF80A Series

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 34.0 CFM (0.952mł/min) 2 Wire Leads
