30-03178

Active

Tensility International Corp

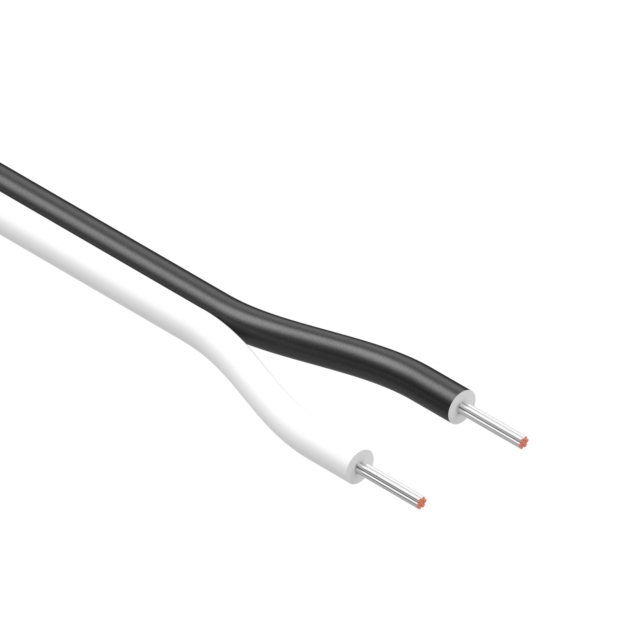

CABLE 2COND 26AWG WHITE/BLACK

Deep-Dive with AI

Search across all available documentation for this part.

30-03178

Active

Tensility International Corp

CABLE 2COND 26AWG WHITE/BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30-03178	- Series

1st Connector Gender	-	Male Pins
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	8 positions
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	X
1st Connector Shell Size - Insert	-	M12
1st Connector Type	-	Plug
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	8
2nd Connector Number of Positions Loaded	-	All
2nd Connector Orientation	-	X
2nd Connector Shell Size - Insert	-	M12
2nd Connector Type	-	Plug
Assembly Configuration	-	Standard
Cable Material	-	Polyvinyl Chloride (PVC)
Cable Type	Multi-Conductor	Round Cable, Hook-Up, Multi-Conductor, Round
Color	-	Black
Conductor Material	-	Copper, Tinned
Conductor Strand	-	7 - 41
Conductor Strand	-	0.0063 - 0.0185 in
Conductor Strand	-	17 - 41 Strands
Conductor Strand	-	0.005 - 19 in
Conductor Strand	-	0.0031 - 0.0118 in
Conductor Strand	-	0.0063 "
Conductor Strand [x]	7	7
Conductor Strand [y]	0.0063 in	0.0063 in
Connector Type	-	Plug to Plug, Circular 08 pos Male to RJ45, 8p8c
Features	-	24 - 26 AWG
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Jacket (Insulation) Diameter	-	0.067 "
Jacket (Insulation) Diameter	-	1.7 mm
Jacket (Insulation) Diameter [diameter]	2.59 mm	0.89 - 5.59 mm
Jacket (Insulation) Diameter [diameter]	0.102 in	0.035 - 0.22 "
Jacket (Insulation) Material	Polyphenylene Ether, Modified (mPPE)	Fluorinated Ethylene-Propylene (FEP), Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Thickness	0.015 in	0.013 - 0.015 in
Jacket (Insulation) Thickness	0.381 mm	0.33 - 0.381 mm
Jacket Color	White, Black	White, Black, Blue, Gray, Red, Green, Orange, Brown, Purple, Yellow
Length	502 ft	4.92 - 502 '
Length	153 m	1.5 - 153 m
Length	-	1 - 152 m
Length	-	3.28 - 498.7 ft
Length	-	Enter Number of Meters in Order Quantity
Mounting Type	-	Free Hanging (In-Line)
Number of Conductors	2	2
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Operating Temperature [Max]	105 ░C	105 - 200 °C
Operating Temperature [Min]	-40 °C	-80 - -40 °C
Ratings	UL Style 21516	UL Style 1332, UL Style 21516
Shielding	-	Shielded
Spool Size	-	502 - 1000.7 ft
Spool Size	-	153 - 305 m
Style	-	Cat6a
Usage	-	Industrial Environments, Cat6a, Cat6a, Industrial Environments - IP67
Voltage	600 V	300 - 600 V
Wire Gauge	26 AWG	10 - 32 AWG

- Series

CBL 8POS MALE TO MALE 4.92'

...

Part	Length	Length	Cable Type	Shielding	Mounting Type	Number of Positions/Contacts	Connector Type	Features	Color	Style	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Ratings	Conductor Strand [custom]	Conductor Strand [diameter]	Spool Size	Spool Size	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Conductor Strand [x]	Conductor Strand [y]	Conductor Strand [custom]	Conductor Strand	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]
Tensility International Corp 10-03974	4.92 '	1.5 m	Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	26 AWG	Black	Cat6a
Tensility International Corp 10-03973	32.81 ft	10 m	Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	24 AWG	Black	Cat6a
Tensility International Corp 30-02543	98.43 ft	30 m	Hook-Up								18 AWG	1.8 mm	0.071 "	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332	19	0.0093 in	1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)
Tensility International Corp 10-03972			Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	24 AWG	Black	Cat6a
Tensility International Corp 30-03178	502 ft	153 m	Multi-Conductor								26 AWG	2.59 mm	0.102 in				-40 °C	105 ░C	0.015 in	0.381 mm	600 V	UL Style 21516					Polyphenylene Ether, Modified (mPPE)	Black, White	2	7	0.0063 in
Tensility International Corp 30-02605	98.43 ft	30 m	Hook-Up								30 AWG	0.89 mm	0.035 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332			1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue
Tensility International Corp 30-02585	98.43 ft	30 m	Hook-Up								26 AWG	1.14 mm	0.045 "	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332			1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue		7	0.0063 in
Tensility International Corp 30-02559	98.43 ft	30 m	Hook-Up								20 AWG	1.63 mm	0.064 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332		0.0075 in	1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Gray				19 Strands
Tensility International Corp 30-02595	98.43 ft	30 m	Hook-Up								28 AWG	1.04 mm	0.041 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332	7		1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue					0.005 in
Tensility International Corp 30-03171	502 ft	153 m	Multi-Conductor								32 AWG						-40 °C	105 ░C	0.015 in	0.381 mm	600 V	UL Style 21516	7				Polyphenylene Ether, Modified (mPPE)	Black, Red	2					0.067 "	1.7 mm	0.0031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	153	$ 0.70
		306	$ 0.64
		765	$ 0.62
		1071	$ 0.59
		3825	$ 0.56
		7650	$ 0.53
		15300	$ 0.50

Description

General part information

- Series

2 Conductor Multi-Conductor Cable Black, White 26 AWG 502.0' (153.0m)

Documents

Technical documentation and resources

No documents available
