10-03973

Active

Tensility International Corp

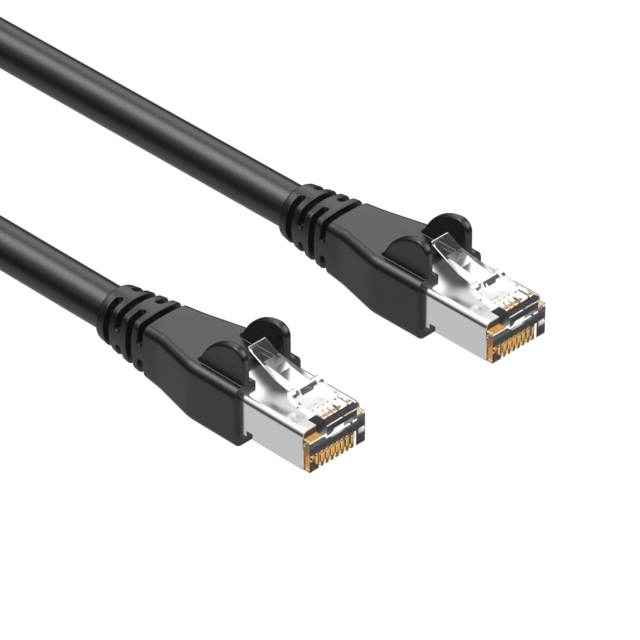

CBL 8POS MALE TO MALE 32.8'

Deep-Dive with AI

Search across all available documentation for this part.

10-03973

Active

Tensility International Corp

CBL 8POS MALE TO MALE 32.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 70.35

Description

General part information

- Series

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 32.81' (10.00m) Shielded

Documents

Technical documentation and resources

No documents available

Specification	10-03973	- Series

1st Connector Gender	-	Male Pins
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	8 positions
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	X
1st Connector Shell Size - Insert	-	M12
1st Connector Type	-	Plug
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	8
2nd Connector Number of Positions Loaded	-	All
2nd Connector Orientation	-	X
2nd Connector Shell Size - Insert	-	M12
2nd Connector Type	-	Plug
Assembly Configuration	-	Standard
Cable Material	-	Polyvinyl Chloride (PVC)
Cable Type	Round Cable	Round Cable, Hook-Up, Multi-Conductor, Round
Color	Black	Black
Conductor Material	-	Copper, Tinned
Conductor Strand	-	7 - 41
Conductor Strand	-	0.0063 - 0.0185 in
Conductor Strand	-	7
Conductor Strand	-	0.0063 in
Conductor Strand	-	17 - 41 Strands
Conductor Strand	-	0.005 - 19 in
Conductor Strand	-	0.0031 - 0.0118 in
Conductor Strand	-	0.0063 "
Connector Type	Plug to Plug	Plug to Plug, Circular 08 pos Male to RJ45, 8p8c
Features	24 AWG	24 - 26 AWG
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Jacket (Insulation) Diameter	-	0.89 - 5.59 mm
Jacket (Insulation) Diameter	-	0.035 - 0.22 "
Jacket (Insulation) Diameter	-	0.067 "
Jacket (Insulation) Diameter	-	1.7 mm
Jacket (Insulation) Material	-	Fluorinated Ethylene-Propylene (FEP), Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Thickness	-	0.013 - 0.015 in
Jacket (Insulation) Thickness	-	0.33 - 0.381 mm
Jacket Color	-	White, Black, Blue, Gray, Red, Green, Orange, Brown, Purple, Yellow
Length	10 m	1.5 - 153 m
Length	32.81 ft	4.92 - 502 '
Length	-	1 - 152 m
Length	-	3.28 - 498.7 ft
Length	-	Enter Number of Meters in Order Quantity
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Conductors	-	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Operating Temperature	-	-80 - -40 °C
Operating Temperature	-	105 - 200 °C
Ratings	-	UL Style 1332, UL Style 21516
Shielding	Shielded	Shielded
Spool Size	-	502 - 1000.7 ft
Spool Size	-	153 - 305 m
Style	Cat6a	Cat6a
Usage	-	Industrial Environments, Cat6a, Cat6a, Industrial Environments - IP67
Voltage	-	300 - 600 V
Wire Gauge	-	10 - 32 AWG
