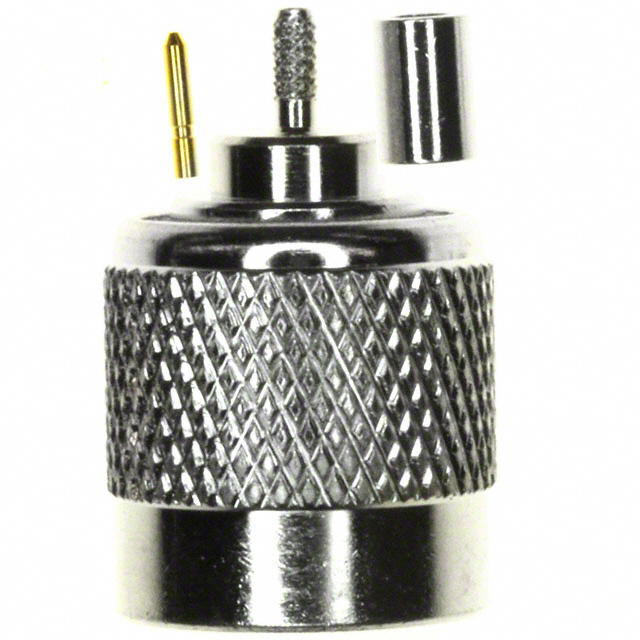

TNC STRAIGHT CRIMP PLUG RG-178 RG-196 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
122429
ActiveAmphenol RF
TNC STRAIGHT CRIMP PLUG RG-178 RG-196 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 122429 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 178B, RG-178, 196A, M17/93-RG178, 196, 178A |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1224 Series
| Part | Dielectric Material | Frequency - Max [Max] | Housing Color | Connector Type | Center Contact Plating | Shield Termination | Includes | Cable Group | Mating Cycles | Number of Ports | Mounting Type | Connector Style | Center Contact Material | Body Finish | Contact Termination | Body Material | Voltage Rating | Impedance | Mounting Feature | Ingress Protection | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Polyoxymethylene (POM) Acetal | 11 GHz | Silver | Male Pin Plug | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule | Belden 7807A LMR-200 | 500 | 1 | Free Hanging (In-Line) | TNC | Brass | Nickel | Crimp | Brass | 500 V | 50 Ohms | |||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Silver | Female Socket Jack | Gold | 1 Connector 1 Contact 1 Lockwasher 2 Nuts | RG-405 (.085" Semi Rigid) | 500 | 1 | TNC | Phosphor Bronze | Nickel | Solder | Brass | 50 Ohms | Bulkhead - Rear Side Nut | ||||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Female Socket Jack | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | 1 | Free Hanging (In-Line) | TNC | Brass | Nickel | Solder | Brass | 500 V | 50 Ohms | Weatherproof | ||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Female Socket Jack | Gold | Solder | Connector Contact Gasket Insulator Lockwasher Nut | 500 | 1 | TNC | Phosphor Bronze | Nickel | Solder | Brass | 500 V | 50 Ohms | Bulkhead - Front Side Nut | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Female Socket Jack | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule | Belden 9258 LMR-240 RG-8X | 500 | 1 | Free Hanging (In-Line) | TNC | Phosphor Bronze | Nickel | Crimp | Brass | 500 V | 50 Ohms | |||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Female Socket Jack | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | RG-55 | 500 | 1 | TNC | Phosphor Bronze | Nickel | Crimp | Brass | 500 V | 50 Ohms | Bulkhead - Front Side Nut | 142 223 400 | ||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 1 GHz | Silver | Male Pin Plug | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule | 9248 Belden 1694A RG-6 Double Braid | 500 | 1 | Free Hanging (In-Line) | TNC | Brass | Nickel | Crimp | Brass | 500 V | 75 Ohms | |||
Amphenol RF | Polyoxymethylene (POM) Acetal | 11 GHz | Silver | Male Pin Plug | Gold | Crimp | 1 Connector 1 Contact 1 Ferrule | 178A 178B 196 196A M17/93-RG178 RG-178 | 500 | 1 | Free Hanging (In-Line) | TNC | Phosphor Bronze | Nickel | Crimp | Brass | 500 V | 50 Ohms | |||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Female Socket Jack | Gold | Clamp | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer | 213 214 RG-8 | 500 | 1 | Free Hanging (In-Line) | TNC | Phosphor Bronze | Nickel | Solder | Brass | 500 V | 50 Ohms | Weatherproof | ||
Amphenol RF | Polytetrafluoroethylene (PTFE) | 11 GHz | Silver | Male Pin Plug | Gold | Crimp | 1 Connector 1 End Cap 1 Ferrule | RG-55 | 500 | 1 | Free Hanging (In-Line) Right Angle | TNC | Brass | Nickel | Solder | Brass | 500 V | 50 Ohms | 142 223 400 |
