122455

Active

Amphenol RF

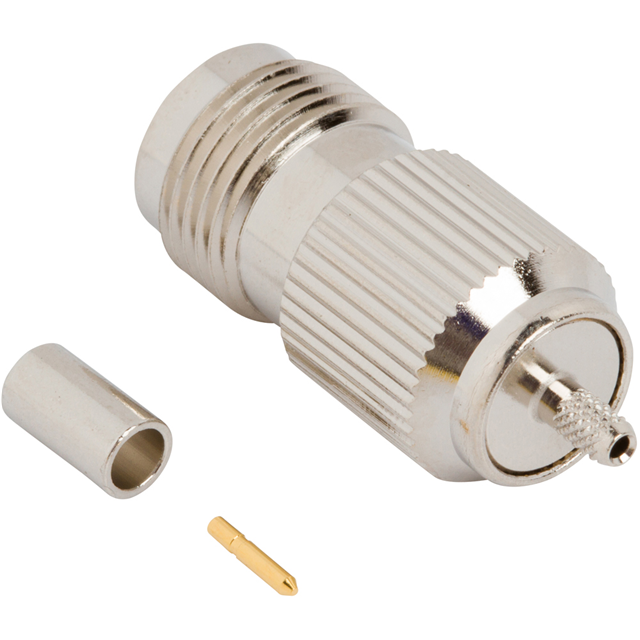

CONN TNC JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

122455

Active

Amphenol RF

CONN TNC JACK STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122455

Body Finish	Nickel
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1224 Series

Part	Dielectric Material	Frequency - Max [Max]	Housing Color	Connector Type	Center Contact Plating	Shield Termination	Includes	Cable Group	Mating Cycles	Number of Ports	Mounting Type	Connector Style	Center Contact Material	Body Finish	Contact Termination	Body Material	Voltage Rating	Impedance	Mounting Feature	Ingress Protection	Cable Group
Amphenol RF 122410	Polyoxymethylene (POM) Acetal	11 GHz	Silver	Male Pin Plug	Gold	Crimp	1 Connector 1 Contact 1 Ferrule	Belden 7807A LMR-200	500	1	Free Hanging (In-Line)	TNC	Brass	Nickel	Crimp	Brass	500 V	50 Ohms
Amphenol RF 122469	Polytetrafluoroethylene (PTFE)		Silver	Female Socket Jack	Gold		1 Connector 1 Contact 1 Lockwasher 2 Nuts	RG-405 (.085" Semi Rigid)	500	1		TNC	Phosphor Bronze	Nickel	Solder	Brass		50 Ohms	Bulkhead - Rear Side Nut
Amphenol RF 122455	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Female Socket Jack	Gold	Crimp	1 Connector 1 Contact 1 Ferrule	178A 178B 196 196A M17/93-RG178 RG-178	500	1	Free Hanging (In-Line)	TNC	Brass	Nickel	Solder	Brass	500 V	50 Ohms		Weatherproof
Amphenol RF 122401	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Female Socket Jack	Gold	Solder	Connector Contact Gasket Insulator Lockwasher Nut		500	1		TNC	Phosphor Bronze	Nickel	Solder	Brass	500 V	50 Ohms	Bulkhead - Front Side Nut
Amphenol RF 122409	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Female Socket Jack	Gold	Crimp	1 Connector 1 Contact 1 Ferrule	Belden 9258 LMR-240 RG-8X	500	1	Free Hanging (In-Line)	TNC	Phosphor Bronze	Nickel	Crimp	Brass	500 V	50 Ohms
Amphenol RF 122479	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Female Socket Jack	Gold	Crimp	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	RG-55	500	1		TNC	Phosphor Bronze	Nickel	Crimp	Brass	500 V	50 Ohms	Bulkhead - Front Side Nut		142 223 400
Amphenol RF 122465	Polytetrafluoroethylene (PTFE)	1 GHz	Silver	Male Pin Plug	Gold	Crimp	1 Connector 1 Contact 1 Ferrule	9248 Belden 1694A RG-6 Double Braid	500	1	Free Hanging (In-Line)	TNC	Brass	Nickel	Crimp	Brass	500 V	75 Ohms
Amphenol RF 122429	Polyoxymethylene (POM) Acetal	11 GHz	Silver	Male Pin Plug	Gold	Crimp	1 Connector 1 Contact 1 Ferrule	178A 178B 196 196A M17/93-RG178 RG-178	500	1	Free Hanging (In-Line)	TNC	Phosphor Bronze	Nickel	Crimp	Brass	500 V	50 Ohms
Amphenol RF 122446	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Female Socket Jack	Gold	Clamp	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	213 214 RG-8	500	1	Free Hanging (In-Line)	TNC	Phosphor Bronze	Nickel	Solder	Brass	500 V	50 Ohms		Weatherproof
Amphenol RF 122430	Polytetrafluoroethylene (PTFE)	11 GHz	Silver	Male Pin Plug	Gold	Crimp	1 Connector 1 End Cap 1 Ferrule	RG-55	500	1	Free Hanging (In-Line) Right Angle	TNC	Brass	Nickel	Solder	Brass	500 V	50 Ohms			142 223 400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.71

Description

General part information

1224 Series

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
