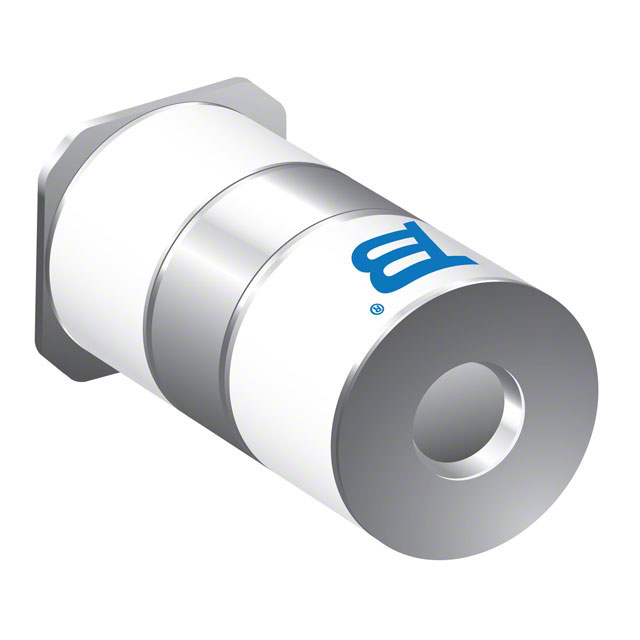

2054-42-SM-RPLF

Active

Bourns Inc.

5KA ±20% 420V 3 SMD-3P GAS DISCHARGE TUBE ARRESTERS (GDT) ROHS

Search across all available documentation for this part.

Active

Bourns Inc.

5KA ±20% 420V 3 SMD-3P GAS DISCHARGE TUBE ARRESTERS (GDT) ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 420 V 5000A (5kA) ±20% 3 Pole Surface Mount

Technical documentation and resources

Specification	2054-42-SM-RPLF	2054 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	5000 A	5000 A
Impulse Discharge Current (8/20µs)	5 kA	5 kA
Mounting Type	Surface Mount	Surface Mount
Number of Poles	3	3
Package / Case	3-SMD Cylinder Square End	3-SMD Cylinder Square End
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	420 V	230 - 470 V

Part	Voltage - DC Spark Over (Nom)	Tolerance	Package / Case	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type
Bourns Inc. 2054-47-SM-RPLF	470 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-23-SM-RPLF	230 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-30-SM-RPLF	300 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-35-SM-RPLF	350 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-42-SM-RPLF	420 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
