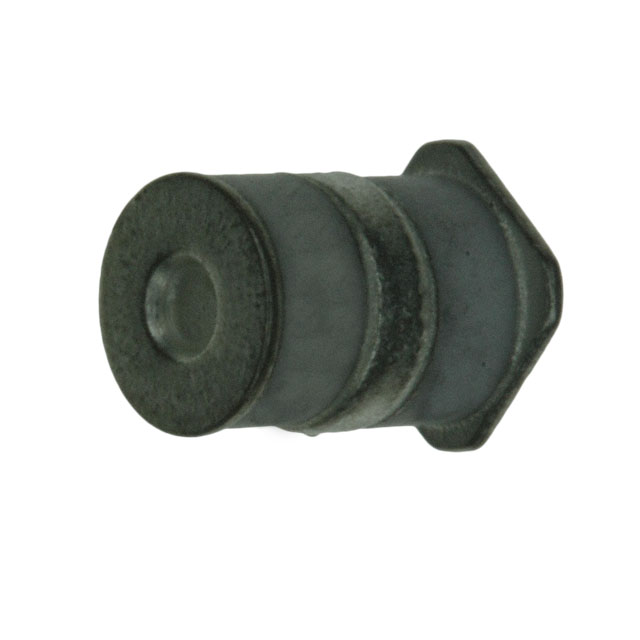

2054-35-SM-RPLF

Active

Bourns Inc.

GDT 350V 5KA 3 POLE SMD

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 350V 5KA 3 POLE SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2700	$ 0.76

General part information

Gas Discharge Tube 350 V 5000A (5kA) ±20% 3 Pole Surface Mount

Technical documentation and resources

Specification	2054-35-SM-RPLF	2054 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	5000 A	5000 A
Impulse Discharge Current (8/20µs)	5 kA	5 kA
Mounting Type	Surface Mount	Surface Mount
Number of Poles	3	3
Package / Case	3-SMD Cylinder Square End	3-SMD Cylinder Square End
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	350 V	230 - 470 V

Part	Voltage - DC Spark Over (Nom)	Tolerance	Package / Case	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type
Bourns Inc. 2054-47-SM-RPLF	470 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-23-SM-RPLF	230 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-30-SM-RPLF	300 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-35-SM-RPLF	350 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
Bourns Inc. 2054-42-SM-RPLF	420 V	20 %	3-SMD Cylinder Square End	3	5000 A	5 kA	Surface Mount
