892-028-555-207

Active

EDAC Inc.

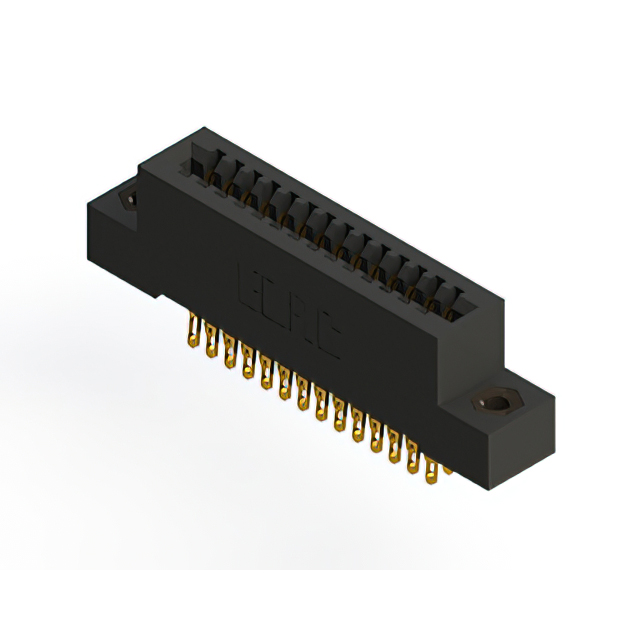

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-028-555-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-028-555-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-028 Series

...

Part	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Gender	Mounting Type	Contact Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Read Out	Contact Finish	Color	Termination Rows	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Termination	Card Type	Features
EDAC Inc. 892-028-520-102	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	1	10 Áin	0.25 Ám	28	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Single	Gold	Black	1	2.54 mm	0.1 in	28	Solder	Non Specified - Single Edge
EDAC Inc. 892-028-524-108	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	1	10 Áin	0.25 Ám	28	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	Single	Gold	Black	1	2.54 mm	0.1 in	28	Solder	Non Specified - Single Edge
EDAC Inc. 892-028-500-102	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	1	10 Áin	0.25 Ám	28	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Single	Gold	Black	1	2.54 mm	0.1 in	28	Solder Eyelet(s)	Non Specified - Single Edge
EDAC Inc. 892-028-555-207	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Board Edge Straddle Mount	Cantilever	2	10 Áin	0.25 Ám	28	125 °C	-40 °C			Flush Mount M3 Threaded Insert Top Opening	Dual	Gold	Black	2	2.54 mm	0.1 in	14	Solder	Non Specified - Dual Edge	Card Extender
EDAC Inc. 892-028-524-212	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	2	10 Áin	0.25 Ám	28	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Dual	Gold	Black	2	2.54 mm	0.1 in	14	Solder	Non Specified - Dual Edge
EDAC Inc. 892-028-500-208	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	2	10 Áin	0.25 Ám	28	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	Dual	Gold	Black	2	2.54 mm	0.1 in	14	Solder Eyelet(s)	Non Specified - Dual Edge
EDAC Inc. 892-028-559-208	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole Right Angle	Cantilever	2	10 Áin	0.25 Ám	28	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	Dual	Gold	Black	2	2.54 mm	0.1 in	14	Solder	Non Specified - Dual Edge
EDAC Inc. 892-028-524-102	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	1	10 Áin	0.25 Ám	28	125 °C	-40 °C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Single	Gold	Black	1	2.54 mm	0.1 in	28	Solder	Non Specified - Single Edge
EDAC Inc. 892-028-523-203	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	2	10 Áin	0.25 Ám	28	125 °C	-40 °C	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Dual	Gold	Black	2	2.54 mm	0.1 in	14	Solder	Non Specified - Dual Edge
EDAC Inc. 892-028-500-108	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Female	Through Hole	Cantilever	1	10 Áin	0.25 Ám	28	125 °C	-40 °C			4-40 Flush Mount Threaded Insert Top Opening	Single	Gold	Black	1	2.54 mm	0.1 in	28	Solder Eyelet(s)	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 78.40
Newark	Each	1	$ 94.09
		100	$ 71.45
		250	$ 62.73
		500	$ 55.50
		1000	$ 42.00

Description

General part information

892-028 Series

28 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
