892-028-500-108
ActiveEDAC Inc.

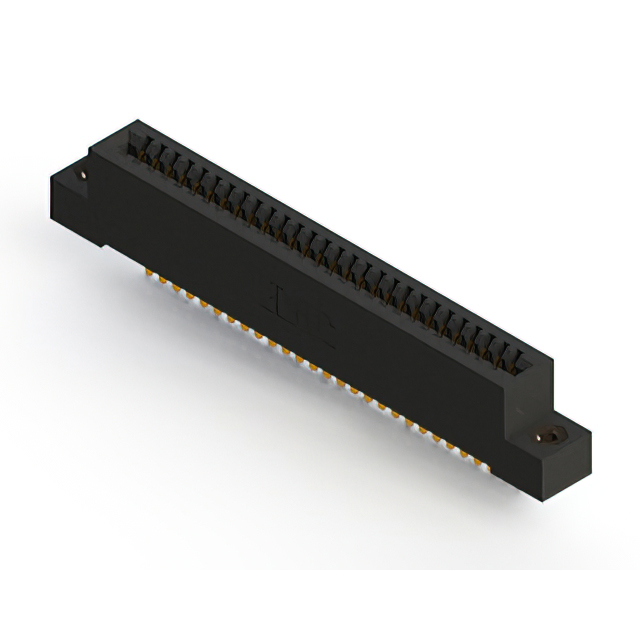

CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, #4-40, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-028-500-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, #4-40, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-028-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
892-028 Series
...
| Part | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Gender | Mounting Type | Contact Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Read Out | Contact Finish | Color | Termination Rows | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Termination | Card Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 1 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Single | Gold | Black | 1 | 2.54 mm | 0.1 in | 28 | Solder | Non Specified - Single Edge | |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 1 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Single | Gold | Black | 1 | 2.54 mm | 0.1 in | 28 | Solder | Non Specified - Single Edge | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 1 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Single | Gold | Black | 1 | 2.54 mm | 0.1 in | 28 | Solder Eyelet(s) | Non Specified - Single Edge | |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Board Edge Straddle Mount | Cantilever | 2 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | Dual | Gold | Black | 2 | 2.54 mm | 0.1 in | 14 | Solder | Non Specified - Dual Edge | Card Extender | ||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 2 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Dual | Gold | Black | 2 | 2.54 mm | 0.1 in | 14 | Solder | Non Specified - Dual Edge | |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 2 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | Black | 2 | 2.54 mm | 0.1 in | 14 | Solder Eyelet(s) | Non Specified - Dual Edge | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole Right Angle | Cantilever | 2 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | Black | 2 | 2.54 mm | 0.1 in | 14 | Solder | Non Specified - Dual Edge | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 1 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Single | Gold | Black | 1 | 2.54 mm | 0.1 in | 28 | Solder | Non Specified - Single Edge | |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 2 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Dual | Gold | Black | 2 | 2.54 mm | 0.1 in | 14 | Solder | Non Specified - Dual Edge | |
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Female | Through Hole | Cantilever | 1 | 10 Áin | 0.25 Ám | 28 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Single | Gold | Black | 1 | 2.54 mm | 0.1 in | 28 | Solder Eyelet(s) | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
