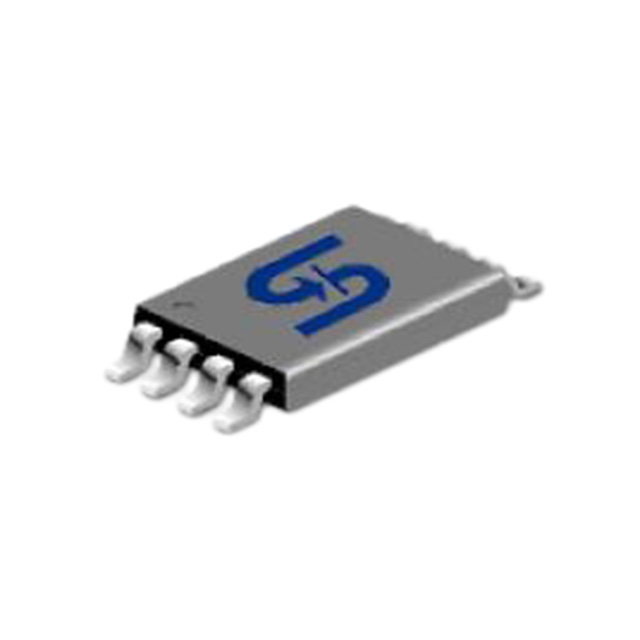

Specification	TSM6968SDCA RVG

Channel Count	2
Configuration	N-Channel
Configuration - Features	Dual
Current - Continuous Drain (Id) (Ta)	6.5 A
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Max)	15 nC
Input Capacitance (Ciss) (Max)	950 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package Length	0.173 in
Package Name	8-TSSOP
Package Width	4.4 mm
Power - Max	1.04 W
Rds On (Max)	22 mOhm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max)	1 V

TSM6968 Series

Part	Mounting Type	Current - Continuous Drain (Id) (Ta)	Gate Charge (Max)	Power - Max	Rds On (Max)	Drain to Source Voltage (Vdss)	Channel Count	Configuration	Configuration - Features	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Vgs(th) (Max)	Package Length	Package Width	Technology	Input Capacitance (Ciss) (Max)	Current - Continuous Drain (Id) (Tc)	Power - Max (Ta)
Taiwan Semiconductor Corporation TSM6968SDCA RVG	Surface Mount	6.5 A	15 nC	1.04 W	22 mOhm	20 V	2	N-Channel	Dual	-55 °C	150 °C	8-TSSOP	1 V	0.173 in	4.4 mm	MOSFET (Metal Oxide)	950 pF
Taiwan Semiconductor Corporation TSM6968DCA RVG	Surface Mount		15 nC	1.04 W	22 mOhm	20 V	2	N-Channel	Dual	-55 °C	150 °C	8-TSSOP	1 V	0.173 in	4.4 mm	MOSFET (Metal Oxide)	950 pF	6.5 A
Taiwan Semiconductor Corporation TSM6968SDCA	Surface Mount	6.5 A	20 nC		22 mOhm	20 V	2	N-Channel	Dual	-55 °C	150 °C	8-TSSOP	1 V	0.173 in	4.4 mm	MOSFET (Metal Oxide)	950 pF		1.04 W
