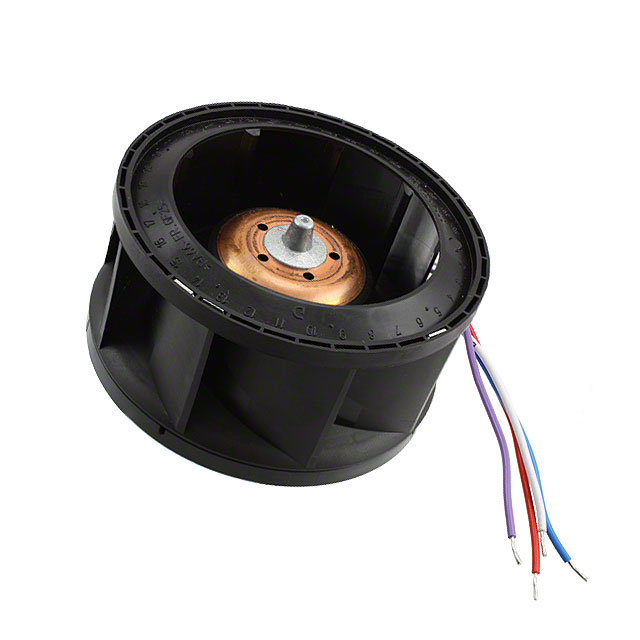

RER1013614N2HHA

Active

ebm-papst Inc.

FAN IMP MTRZD 101X52MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 101X52MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER1013614N2HHA

Air Flow	3.13 mł/min
Air Flow	111.8 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polyamide (PA), Nylon, Fiberglass Reinforced
Power (Watts)	23 W
Size / Dimension [diameter]	101 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.2 VDC
Voltage Range [Min]	18 VDC
Weight	0.67 lb
Weight	303.91 g
Width [x]	52 mm

Part	Features	Approval Agency	Voltage - Rated	Lifetime @ Temp.	Size / Dimension [diameter]	Bearing Type	RPM	Termination	Noise	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Material - Blade	Material - Frame	Air Flow	Air Flow	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Weight	Weight	Width [x]	Air Flow
ebm-papst Inc. RER101-36/12NHH	PWM Control Speed Sensor (Tach)	CE	12 VDC	60000 Hrs	100 mm	Ball	6000 RPM	4 Wire Leads	6.9 dB(A)	13.6 VDC	9 V	20.5 W	Plastic Fiberglass Reinforced	Plastic Fiberglass Reinforced	112 CFM	3.14 m³/min	Motorized Impellers	-20 °C	70 °C	-20 C	70 °C	50.25 mm
ebm-papst Inc. RER1013614N2HHA	PWM Control Speed Sensor (Tach)		24 VDC		101 mm	Ball		4 Wire Leads		27.2 VDC	18 VDC	23 W	Fiberglass Reinforced Nylon Polyamide (PA)	Polyamide (PA) Nylon Fiberglass Reinforced	3.13 mł/min		Motorized Impellers						0.67 lb	303.91 g	52 mm	111.8 CFM
ebm-papst Inc. RER101-36/12N/2HHPR-181	PWM Control Speed Sensor (Tach)		12 VDC		101 mm	Ball	6000 RPM	4 Wire Leads	74 dB(A)	13.6 VDC	9 V	20.5 W	Fiberglass Reinforced Nylon Polyamide (PA)	Polyamide (PA) Nylon Fiberglass Reinforced	112 CFM	3.14 m³/min	Motorized Impellers					51.7 mm	0.672 lb	304.81 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 24VDC Round - 101mm Dia Ball 111.8 CFM (3.13mł/min) 4 Wire Leads
