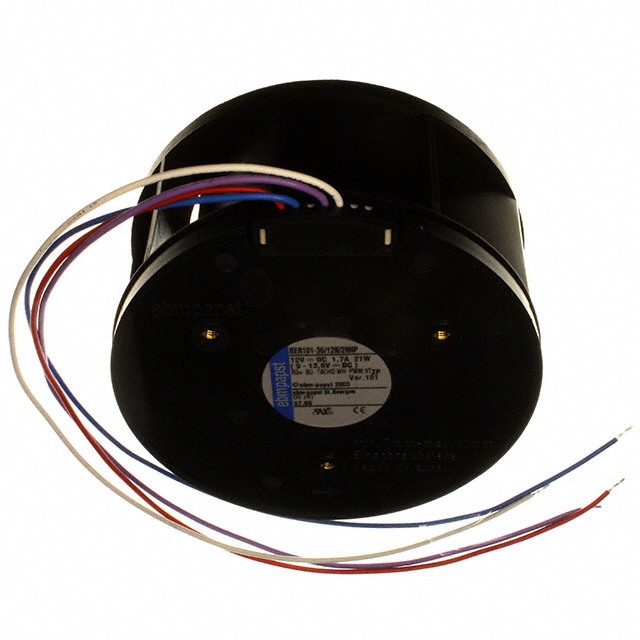

RER101-36/12N/2HHPR-181

Active

ebm-papst Inc.

FAN IMP MTRZD 101X51.7MM 12VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 101X51.7MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER101-36/12N/2HHPR-181

Air Flow	112 CFM
Air Flow	3.14 m³/min
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polyamide (PA), Nylon, Fiberglass Reinforced
Noise	74 dB(A)
Power (Watts)	20.5 W
RPM	6000 RPM
Size / Dimension [diameter]	101 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.6 VDC
Voltage Range [Min]	9 V
Weight	304.81 g
Weight	0.672 lb
Width [y]	51.7 mm

Part	Features	Approval Agency	Voltage - Rated	Lifetime @ Temp.	Size / Dimension [diameter]	Bearing Type	RPM	Termination	Noise	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Material - Blade	Material - Frame	Air Flow	Air Flow	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Weight	Weight	Width [x]	Air Flow
ebm-papst Inc. RER101-36/12NHH	PWM Control Speed Sensor (Tach)	CE	12 VDC	60000 Hrs	100 mm	Ball	6000 RPM	4 Wire Leads	6.9 dB(A)	13.6 VDC	9 V	20.5 W	Plastic Fiberglass Reinforced	Plastic Fiberglass Reinforced	112 CFM	3.14 m³/min	Motorized Impellers	-20 °C	70 °C	-20 C	70 °C	50.25 mm
ebm-papst Inc. RER1013614N2HHA	PWM Control Speed Sensor (Tach)		24 VDC		101 mm	Ball		4 Wire Leads		27.2 VDC	18 VDC	23 W	Fiberglass Reinforced Nylon Polyamide (PA)	Polyamide (PA) Nylon Fiberglass Reinforced	3.13 mł/min		Motorized Impellers						0.67 lb	303.91 g	52 mm	111.8 CFM
ebm-papst Inc. RER101-36/12N/2HHPR-181	PWM Control Speed Sensor (Tach)		12 VDC		101 mm	Ball	6000 RPM	4 Wire Leads	74 dB(A)	13.6 VDC	9 V	20.5 W	Fiberglass Reinforced Nylon Polyamide (PA)	Polyamide (PA) Nylon Fiberglass Reinforced	112 CFM	3.14 m³/min	Motorized Impellers					51.7 mm	0.672 lb	304.81 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 12VDC Round - 101mm Dia Ball 112.0 CFM (3.14m³/min) 4 Wire Leads
