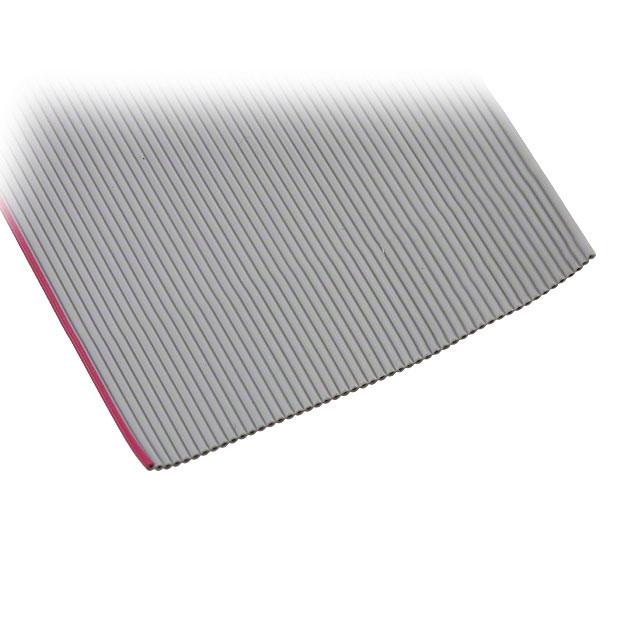

AWG28-50/G-1/300

Active

Assmann WSW Components

CBL RBN 50COND 0.039 GRAY FOOT

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RBN 50COND 0.039 GRAY FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-50/G-1/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m
Length	50 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	50
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	1.969 in
Ribbon Width [x]	50.01 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Wire Gauge	Number of Conductors	Shielding	Length	Length	Ratings	Jacket Color	Pitch [x]	Pitch [x]	Voltage	Insulation Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Material	Cable Type	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Ribbon Width [x]	Ribbon Width [x]	Conductor Strand [custom]	Conductor Strand [custom]	First Conductor Mark	Ribbon Width	Ribbon Width	Operating Temperature	Length	Spool Size	Spool Size
Assmann WSW Components AWG28-50/F-1/300	28 AWG	50	Unshielded	15.24 m	50 ft	UL Style 2651	Multiple	0.039 in	1 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m	10 ft	0.89 mm	0.035 in	1.969 in	50.01 mm	7	36 AWG
Assmann WSW Components AWG28-50/G/300	28 AWG	50	Unshielded	7.62 m 15.24 m	25 ft 50 ft	UL Style 2651	Gray	0.05 in	1.27 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m	10 ft	0.89 mm	0.035 in			7	36 AWG	Red	63.5 mm	2.5 "
Assmann WSW Components AWG28-50/F/300	28 AWG	50	Unshielded	15.24 m 91.44 m	50 ft 300 ft	UL Style 2651	Multiple	0.05 in	1.27 mm	300 V	100 MOhms			Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m 30.48 m	10 ft 100 ft	0.89 mm	0.035 in			7	36 AWG	Red	63.5 mm	2.5 "	105 C
Assmann WSW Components AWG28-50/G-1/300	28 AWG	50	Unshielded	15.24 m	50 ft	UL Style 2651	Gray	0.039 in	1 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	30.48 m	100 ft	0.89 mm	0.035 in	1.969 in	50.01 mm	7	36 AWG	Red				Enter Number of Feet in Order Quantity	300 ft	91.44 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 50 Conductors 0.039" (1.00mm) Flat Cable Enter Number of Feet in Order Quantity
