AWG28-50/G/300

Unknown

Assmann WSW Components

CBL RIBN 50COND 0.05 GRAY 50'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 50COND 0.05 GRAY 50'

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge	Number of Conductors	Shielding	Length	Length	Ratings	Jacket Color	Pitch [x]	Pitch [x]	Voltage	Insulation Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Material	Cable Type	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Ribbon Width [x]	Ribbon Width [x]	Conductor Strand [custom]	Conductor Strand [custom]	First Conductor Mark	Ribbon Width	Ribbon Width	Operating Temperature	Length	Spool Size	Spool Size
Assmann WSW Components AWG28-50/F-1/300	28 AWG	50	Unshielded	15.24 m	50 ft	UL Style 2651	Multiple	0.039 in	1 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m	10 ft	0.89 mm	0.035 in	1.969 in	50.01 mm	7	36 AWG
Assmann WSW Components AWG28-50/G/300	28 AWG	50	Unshielded	7.62 m 15.24 m	25 ft 50 ft	UL Style 2651	Gray	0.05 in	1.27 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m	10 ft	0.89 mm	0.035 in			7	36 AWG	Red	63.5 mm	2.5 "
Assmann WSW Components AWG28-50/F/300	28 AWG	50	Unshielded	15.24 m 91.44 m	50 ft 300 ft	UL Style 2651	Multiple	0.05 in	1.27 mm	300 V	100 MOhms			Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	3.05 m 30.48 m	10 ft 100 ft	0.89 mm	0.035 in			7	36 AWG	Red	63.5 mm	2.5 "	105 C
Assmann WSW Components AWG28-50/G-1/300	28 AWG	50	Unshielded	15.24 m	50 ft	UL Style 2651	Gray	0.039 in	1 mm	300 V	100 MOhms	105 ░C	-10 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Flat Cable	30.48 m	100 ft	0.89 mm	0.035 in	1.969 in	50.01 mm	7	36 AWG	Red				Enter Number of Feet in Order Quantity	300 ft	91.44 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

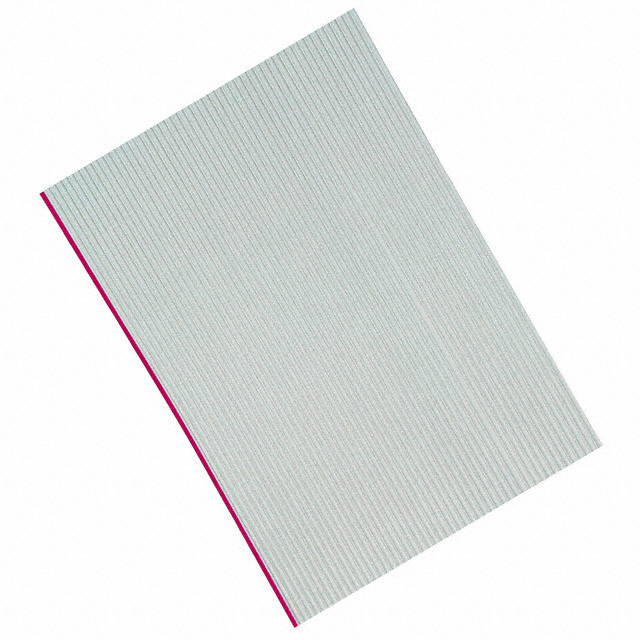

Flat Ribbon Cable Gray 50 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
