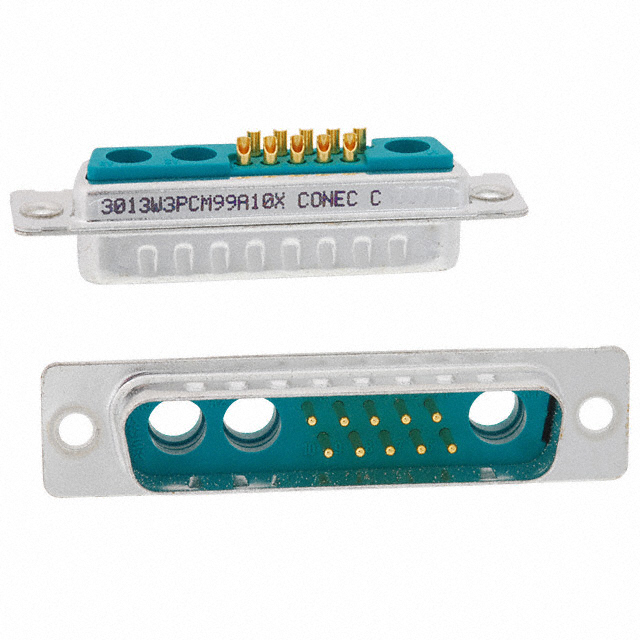

3013W3PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 13POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3013W3PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 13POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3013W3PCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Number of Positions [custom]	3
Number of Positions [custom]	10
Number of Rows	2
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Wire Gauge	20 AWG

3013W3P Series

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows	Material Flammability Rating	Features	Connector Style	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Dielectric Material	Contact Material	Wire Gauge	Voltage Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Connector Type	Contact Finish Thickness	Contact Type	Shell Finish Thickness	Shell Finish Thickness	Note
Amphenol CONEC 3013W3PAM99A30X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Cable Side	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	20 AWG	250 VDC	Free Hanging (In-Line)	Green	-55 °C	125 °C	8 çin	0.203 çm	Gold	7.5 A	Male Pins Plug
Amphenol CONEC 3013W3PAM99A20X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Cable Side (M3)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy		250 VDC	Free Hanging (In-Line)	Green	-55 °C	125 °C			Gold	7.5 A	Male Pins Plug	Flash
Amphenol CONEC 3013W3PAT74N40X																							Male Pins Plug
Amphenol CONEC 3013W3PCM99A10X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Housing/Shell (Unthreaded)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	20 AWG		Free Hanging (In-Line)	Green			30 Áin	0.76 Ám	Gold		Male Pins Plug
Amphenol CONEC 3013W3PXK99A10X	13C3 13W3 B DB	3	2		Grounding Indents	Combo D-Sub	Housing/Shell (Unthreaded)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled				Free Hanging (In-Line)	Black	-55 °C	125 °C					Plug for Male Contacts		Coax Power	8 µm	315 µin	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.85
		10	$ 8.87
		25	$ 8.35
		50	$ 8.14
		100	$ 7.92
		250	$ 7.07
		450	$ 6.64
		950	$ 5.87

Description

General part information

3013W3P Series

13 (10 + 3 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
