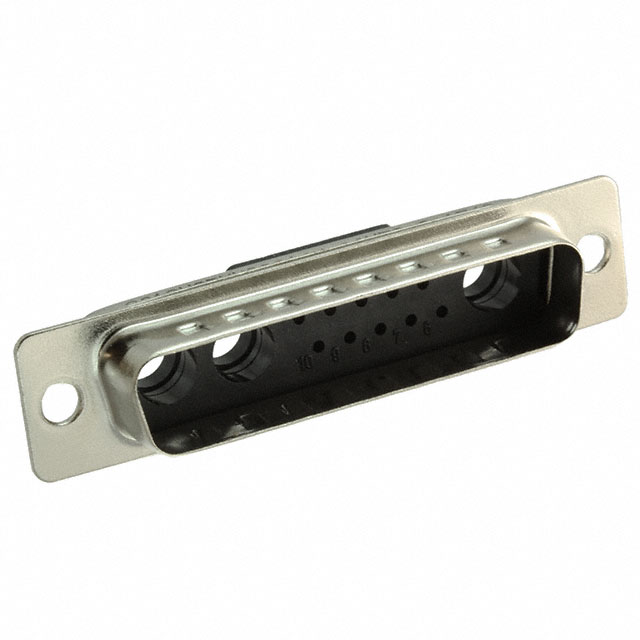

3013W3PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 13POS

Deep-Dive with AI

Search across all available documentation for this part.

3013W3PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 13POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3013W3PXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	13
Number of Positions [custom]	3
Number of Positions [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3

3013W3P Series

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows	Material Flammability Rating	Features	Connector Style	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Dielectric Material	Contact Material	Wire Gauge	Voltage Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Connector Type	Contact Finish Thickness	Contact Type	Shell Finish Thickness	Shell Finish Thickness	Note
Amphenol CONEC 3013W3PAM99A30X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Cable Side	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	20 AWG	250 VDC	Free Hanging (In-Line)	Green	-55 °C	125 °C	8 çin	0.203 çm	Gold	7.5 A	Male Pins Plug
Amphenol CONEC 3013W3PAM99A20X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Cable Side (M3)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy		250 VDC	Free Hanging (In-Line)	Green	-55 °C	125 °C			Gold	7.5 A	Male Pins Plug	Flash
Amphenol CONEC 3013W3PAT74N40X																							Male Pins Plug
Amphenol CONEC 3013W3PCM99A10X	13C3 13W3 B DB	3	2	UL94 V-0	Grounding Indents	Combo D-Sub	Housing/Shell (Unthreaded)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	20 AWG		Free Hanging (In-Line)	Green			30 Áin	0.76 Ám	Gold		Male Pins Plug
Amphenol CONEC 3013W3PXK99A10X	13C3 13W3 B DB	3	2		Grounding Indents	Combo D-Sub	Housing/Shell (Unthreaded)	3	10	13	Polybutylene Terephthalate (PBT) Glass Filled				Free Hanging (In-Line)	Black	-55 °C	125 °C					Plug for Male Contacts		Coax Power	8 µm	315 µin	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.51
		10	$ 3.19
		25	$ 3.02
		50	$ 2.95
		100	$ 2.81
		250	$ 2.46
		500	$ 2.39
		1000	$ 2.04
		2500	$ 1.90

Description

General part information

3013W3P Series

Plug for Male Contacts Housing D-Sub, Combo Connector 13 (10 + 3 Coax or Power) Position

Documents

Technical documentation and resources

No documents available
