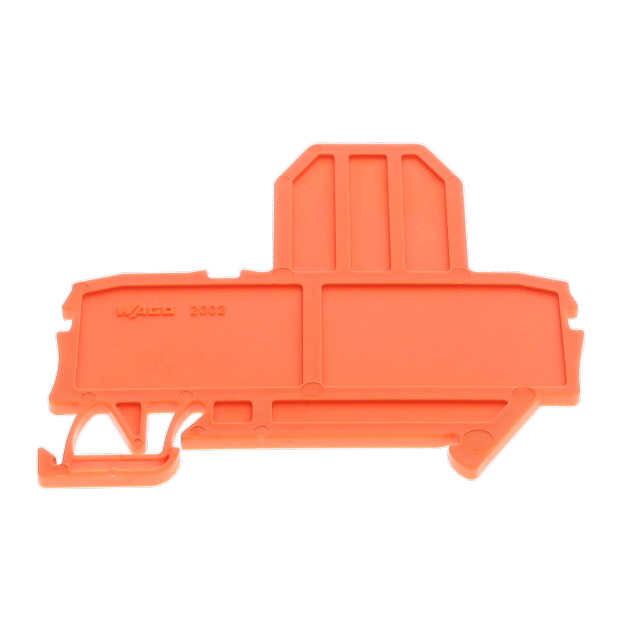

2002-992

Active

WAGO Corporation

END PLATE FOR FUSE TERMINAL BLOC

Search across all available documentation for this part.

Active

WAGO Corporation

END PLATE FOR FUSE TERMINAL BLOC

Technical Specifications

Parameters and characteristics for this part

Specification	2002-992

For Use With/Related Products	TOPJOB®S Series
Type	End Plate

Part	Current - UL	Voltage - UL	Terminal - Width [y]	Number of Levels	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Type	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Number of Positions	Color	For Use With/Related Products	Style
WAGO Corporation 2002-1302	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A
WAGO Corporation 2002-1205	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2	Black
WAGO Corporation 2002-2292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-409											Terminal Block Cross Connection					9	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-2291											End Plate						Gray	TOPJOB®S Series
WAGO Corporation 2002-404											Terminal Block Cross Connection					4	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-407											Terminal Block Cross Connection					7	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1202	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2
WAGO Corporation 2002-402											Terminal Block Cross Connection					2	Gray	TOPJOB®S Series	Flat Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector End Plate For TOPJOB®S Series
