2002-2291

Active

WAGO Corporation

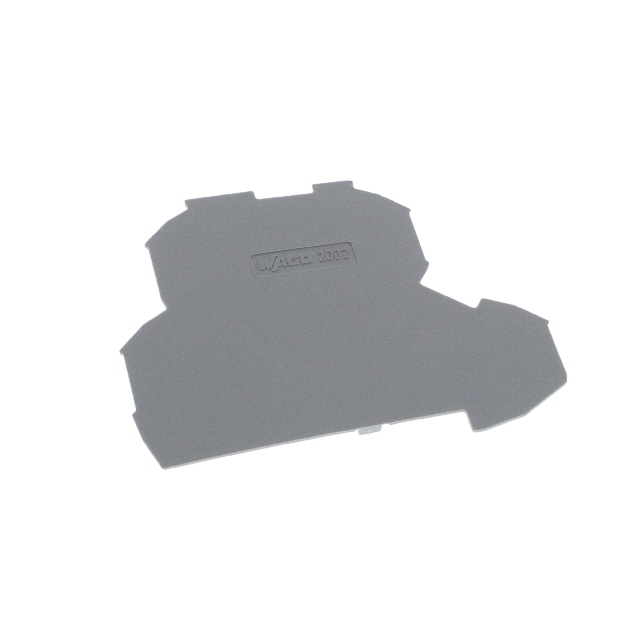

END AND INTERMEDIATE PLATE, 0.8MM THICKNESS, FOR USE WITH TOPJOB® 12AWG TERMINAL BLOCKS, GREY

Search across all available documentation for this part.

Active

WAGO Corporation

END AND INTERMEDIATE PLATE, 0.8MM THICKNESS, FOR USE WITH TOPJOB® 12AWG TERMINAL BLOCKS, GREY

Technical Specifications

Parameters and characteristics for this part

Specification	2002-2291

Color	Gray
For Use With/Related Products	TOPJOB®S Series
Type	End Plate

Part	Current - UL	Voltage - UL	Terminal - Width [y]	Number of Levels	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Type	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Number of Positions	Color	For Use With/Related Products	Style
WAGO Corporation 2002-1302	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A
WAGO Corporation 2002-1205	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2	Black
WAGO Corporation 2002-2292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-409											Terminal Block Cross Connection					9	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1292											End Plate							TOPJOB®S Series
WAGO Corporation 2002-2291											End Plate						Gray	TOPJOB®S Series
WAGO Corporation 2002-404											Terminal Block Cross Connection					4	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-407											Terminal Block Cross Connection					7	Gray	TOPJOB®S Series	Flat Pins
WAGO Corporation 2002-1202	20 A	600 V	5.2 mm	1	Polyamide (PA66) Nylon 6/6	10 mm	12 mm	12 AWG	18 AWG	Push In Spring	Feed Through	800 V	0.75 mm²	4 mm²	32 A	2
WAGO Corporation 2002-402											Terminal Block Cross Connection					2	Gray	TOPJOB®S Series	Flat Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The 2002-2291 is a grey End and Intermediate Plate for use with the TOPJOB® S 2.5mm²/AWG 12 series-2002 double deck terminal block.
